Thermoval

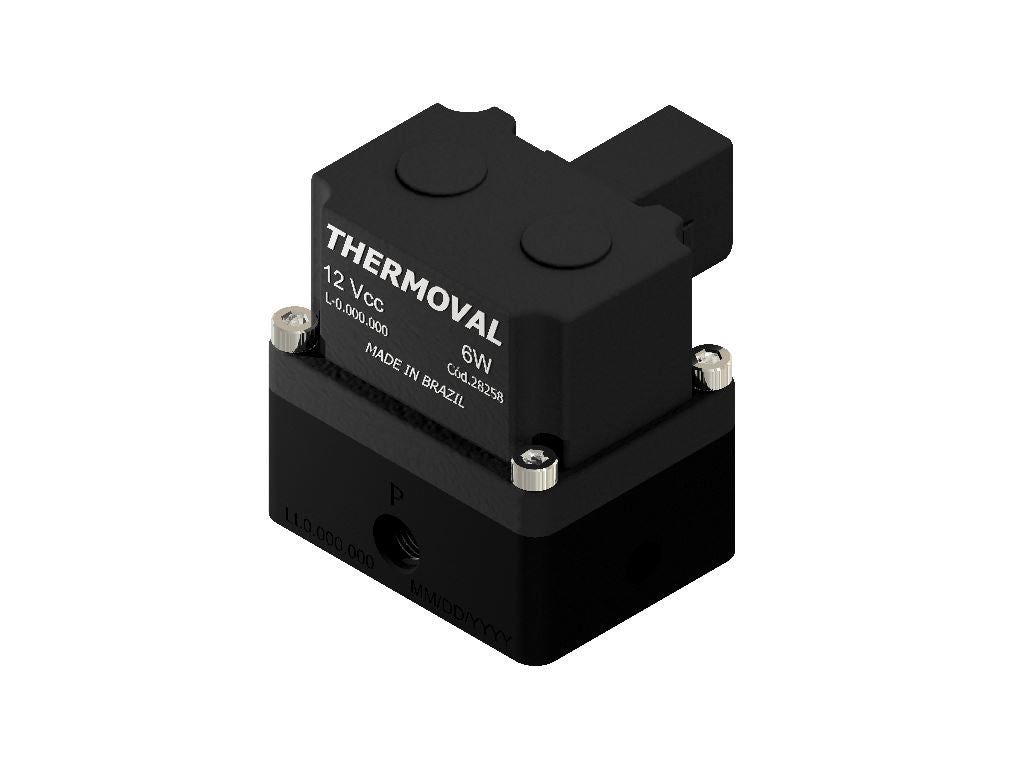

Thermoval 28259 - BMW X5(F15) 2014 - 2018 Suspension Air Ride Supply Solenoid Vave Block ( 4722555610)
Thermoval 28259 - BMW X5(F15) 2014 - 2018 Suspension Air Ride Supply Solenoid Vave Block ( 4722555610)
Regular price
$103.25 USD
Regular price
$103.25 USD
Sale price
$103.25 USD
Unit price
/
per
Couldn't load pickup availability
OPERATION Manifold Composition for 2 Valves 2/2 NC
CONNECTION
THREAD M8x1 VOSS STANDARD - INLET
THREAD M8x1 VOSS STANDARD - OUTLET
ORIFICE Ø 0,8 mm - ( Kv 0,02 ) Flow Factor.
MATERIAL
Body - Aluminum (ASTM B211) - Anodized.
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Double Solenoid
Width 44,0 x Length 58,0 x Height 36,0 x Core Diameter: 9,2;
Encapsulation: Polyamide 6 (with 30% fiber glass)
12 VDC
6 W
Electrical specifications according to special characteristics.
MAIN APPLICATIONS
Air/Oxygen
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 0,31600
WARRANTY 1 Year
CONNECTION
THREAD M8x1 VOSS STANDARD - INLET
THREAD M8x1 VOSS STANDARD - OUTLET
ORIFICE Ø 0,8 mm - ( Kv 0,02 ) Flow Factor.
MATERIAL
Body - Aluminum (ASTM B211) - Anodized.
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Double Solenoid
Width 44,0 x Length 58,0 x Height 36,0 x Core Diameter: 9,2;
Encapsulation: Polyamide 6 (with 30% fiber glass)
12 VDC
6 W
Electrical specifications according to special characteristics.
MAIN APPLICATIONS
Air/Oxygen
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 0,31600
WARRANTY 1 Year
