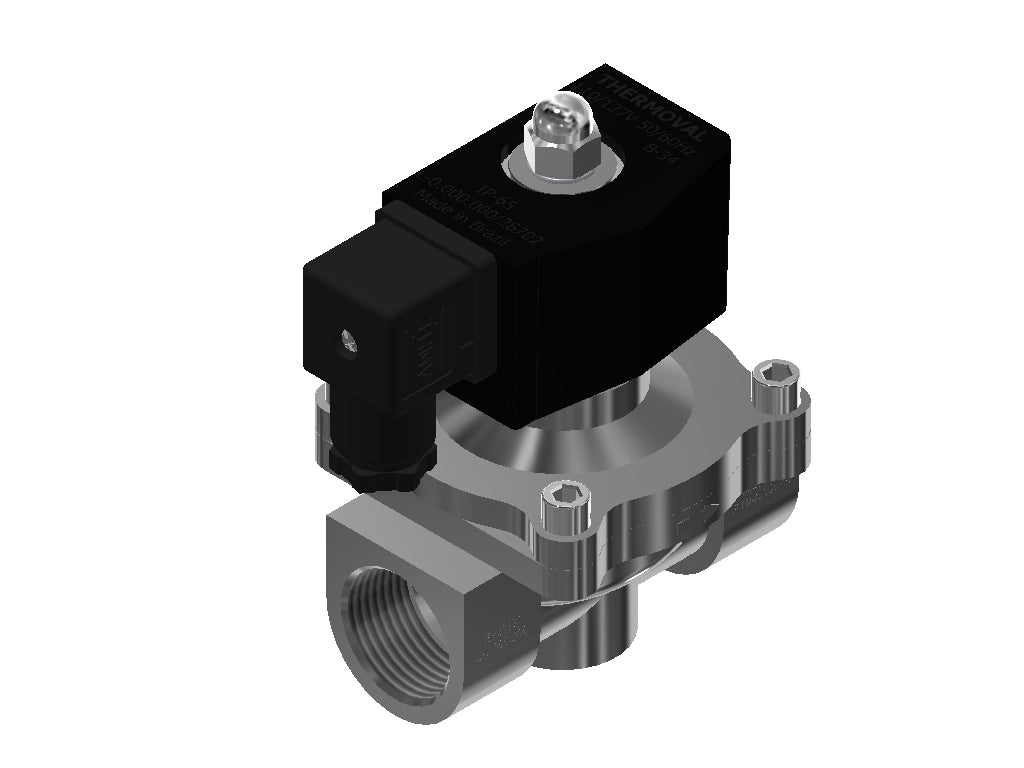

Solenoid Valve General Use Stainless Steel

OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 1" NPT (ANSI B2.1) - Inlet.
Connection Female 1" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 25,0 mm - (Kv 11,95) Flow Factor.
MATERIAL
Body - Stainless Steel (AISI 316).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 47.5 x Height 42 x Length 59.5 x Diam. 17x34mm
Degree of Protection: IP65
Package: Polyamide 6 (30% fiber)
110/127 V 50/60 Hz
15 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Fluid of silica, air, lubricant to the base of Di-Ester, liquid petroleum gas(LGP), H2O, Ethanol, natural gas and cold
oxygen gas.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 1,16000
WARRANTY 1 Year
