Thermoval

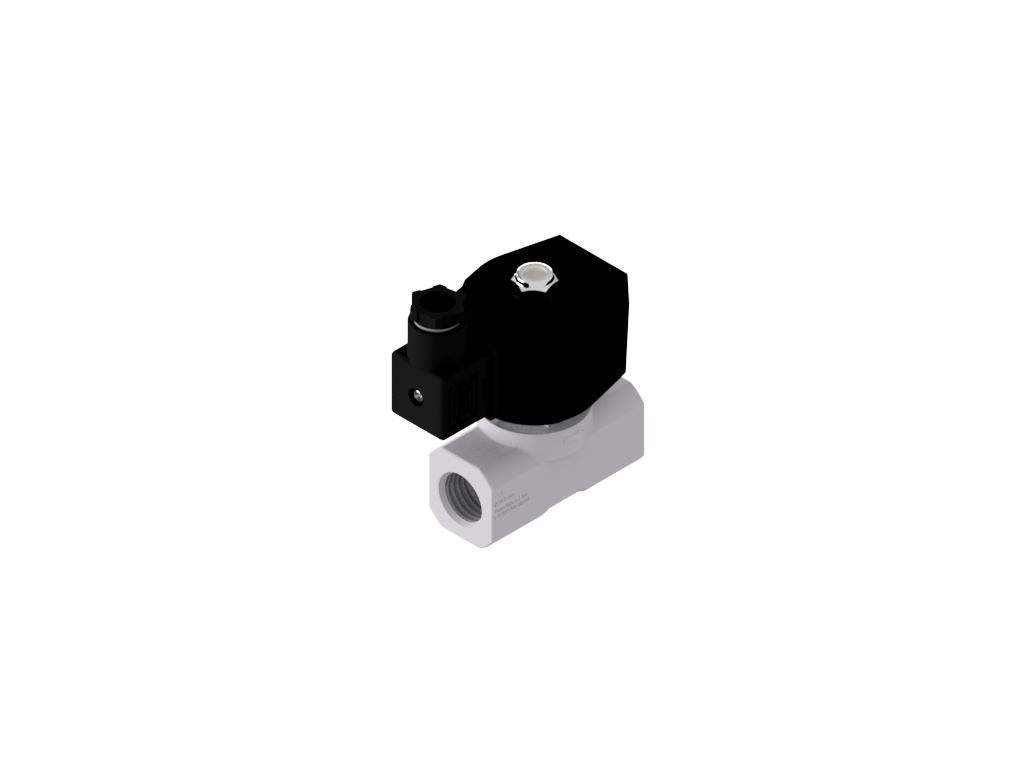

Solenoid Valve 2-way, Normally Closed, 1/2 BSP, 220V - 24140

Solenoid Valve 2-way, Normally Closed, 1/2 BSP, 220V - 24140

Regular price $31.70 USD
Regular price Sale price $31.70 USD
Sale Sold out
OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 1/2" BSP (ISO 228/1) - Inlet.
Connection Female 1/2" BSP (ISO 228/1) - Outlet.
ORIFICE Ø 18,0 mm - (Kv 5,92) Flow Factor.
MATERIAL
Body - Aluminum (ASTM B211).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 47.5 x Height 42.0 x Length 59.5 x Diam. the Nucleo 17x34mm e 10,5x3mm.
Protection class:IP65.
Encapsulation: Polyamide 6 (30% glass fiber black color)
220/240 V 50/60 Hz
13 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Air, LPG and NVG
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 0,2 (bar)
SPECIAL FEATURES
Valve for gas line.
GLP and GNV
Power: 13 W.
Body: Forged Aluminum Alloy 6351 T6.
WEIGHT (KG) 0,54000
WARRANTY 1 Year
