Thermoval

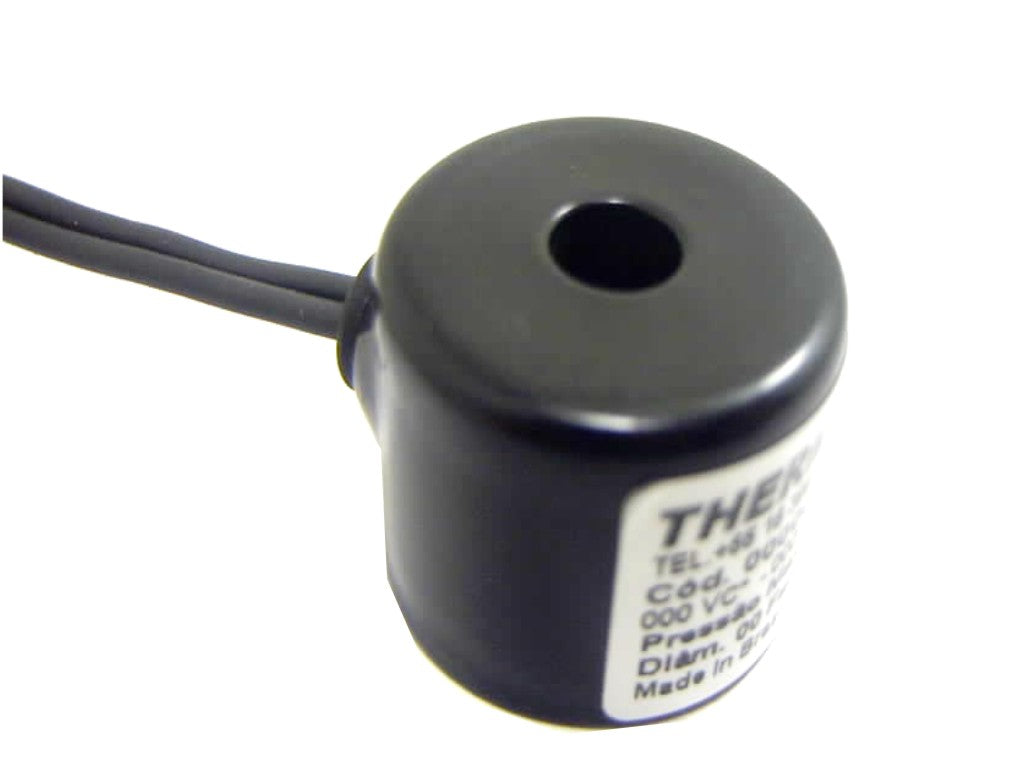

Solenoid Coil 110/127 V 50/60 Hz 12W
Solenoid Coil 110/127 V 50/60 Hz 12W
Regular price
$22.86 USD
Regular price
$22.86 USD
Sale price
$22.86 USD
Unit price
/
per
Couldn't load pickup availability
ENAMELED WIRE AWG 39 (Class H)
REEL Polyamide 6 (30% glass fiber black color)
ARMOR SAE steel - Electrostatic painting black semi matte
TAPE PROTECTION Polyester
VOLTAGE 110/127 V 50/60 Hz
POWER 12 W
TYPE
Diameter 30.5 x Height 24.5 x Diam. the Nucleo: 8.5
Rectifier Diode Model S2 - Vrrm 1000V x I (Av) 2.0A
Protection Class: IP 52
CONNECTOR Tinned Handle with 180 + -10 (mm).
SPECIAL FEATURES
THE COIL IS INTERMITTENT USING 2 MIN. ENERGIZED AND 10 MIN.
DESENERGIZED.
WEIGHT (Kg) 0,06000
WARRANTY
1 YearApplication: Valve Actuation.
Installation and grounding: Coil without polarity with optional grounding as application requirements
REEL Polyamide 6 (30% glass fiber black color)
ARMOR SAE steel - Electrostatic painting black semi matte
TAPE PROTECTION Polyester
VOLTAGE 110/127 V 50/60 Hz
POWER 12 W
TYPE
Diameter 30.5 x Height 24.5 x Diam. the Nucleo: 8.5
Rectifier Diode Model S2 - Vrrm 1000V x I (Av) 2.0A
Protection Class: IP 52
CONNECTOR Tinned Handle with 180 + -10 (mm).
SPECIAL FEATURES
THE COIL IS INTERMITTENT USING 2 MIN. ENERGIZED AND 10 MIN.
DESENERGIZED.
WEIGHT (Kg) 0,06000
WARRANTY
1 YearApplication: Valve Actuation.
Installation and grounding: Coil without polarity with optional grounding as application requirements
