Thermoval

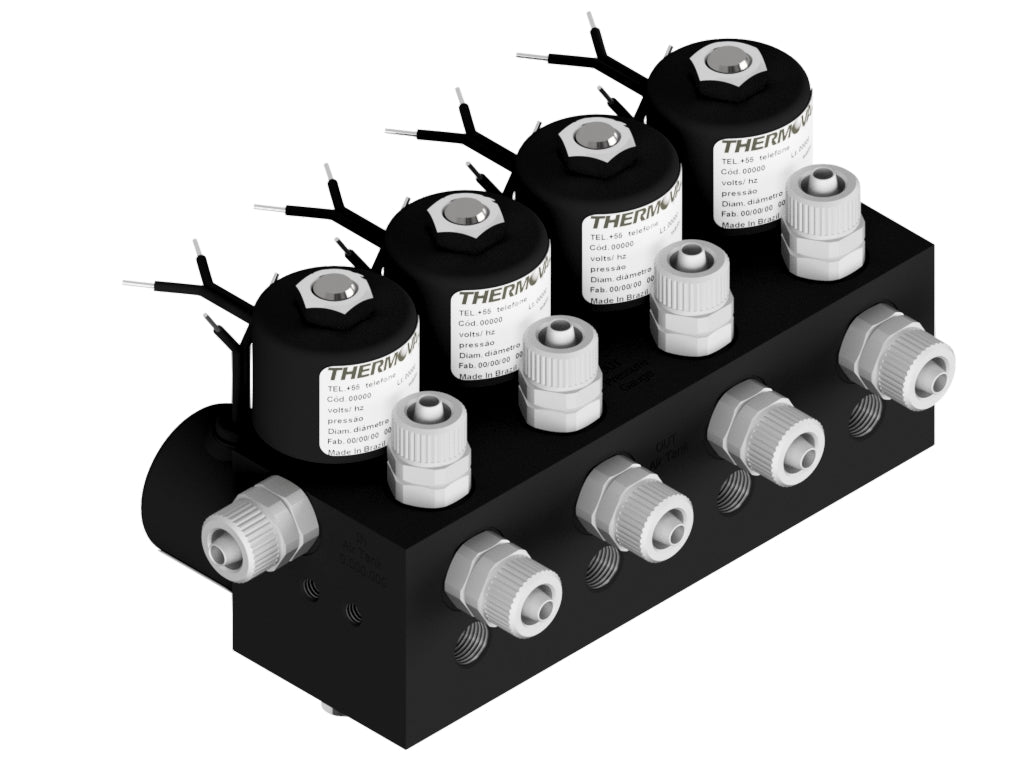

2-way Air Valve Block Normally Closed 12VDC (Fittings included) - 24828

2-way Air Valve Block Normally Closed 12VDC (Fittings included) - 24828

Regular price $65.36 USD
Regular price $132.49 USD Sale price $65.36 USD
Sale Sold out

OPERATION Manifold Composition for 8 Valves 2/2 NC
CONNECTION
Spigot Ø 5,8 mm with nut for fixation of the flexible tube 5.0 mm - Inlet.
Spigot Ø 5,8 mm with nut for fixation of the flexible tube 5.0 mm - Outlet.
ORIFICE Ø 3,5 mm - ( Kv 0,31 ) Flow Factor.
MATERIAL
Body - Aluminum (ASTM B211) - Anodized.
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Diameter 30.5 x Height 24.5 x Diam. the Nucleo: 8.5
Protection Class: IP 52
12 VDC
24 W
Tinned Handle with 180 + -10 (mm).
MAIN APPLICATIONS
Mineral oils, hydraulic fluids, LGP, NG air and water.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 1,65830
WARRANTY 1 Year

20 DAYS TO PRODUCE
