Thermoval

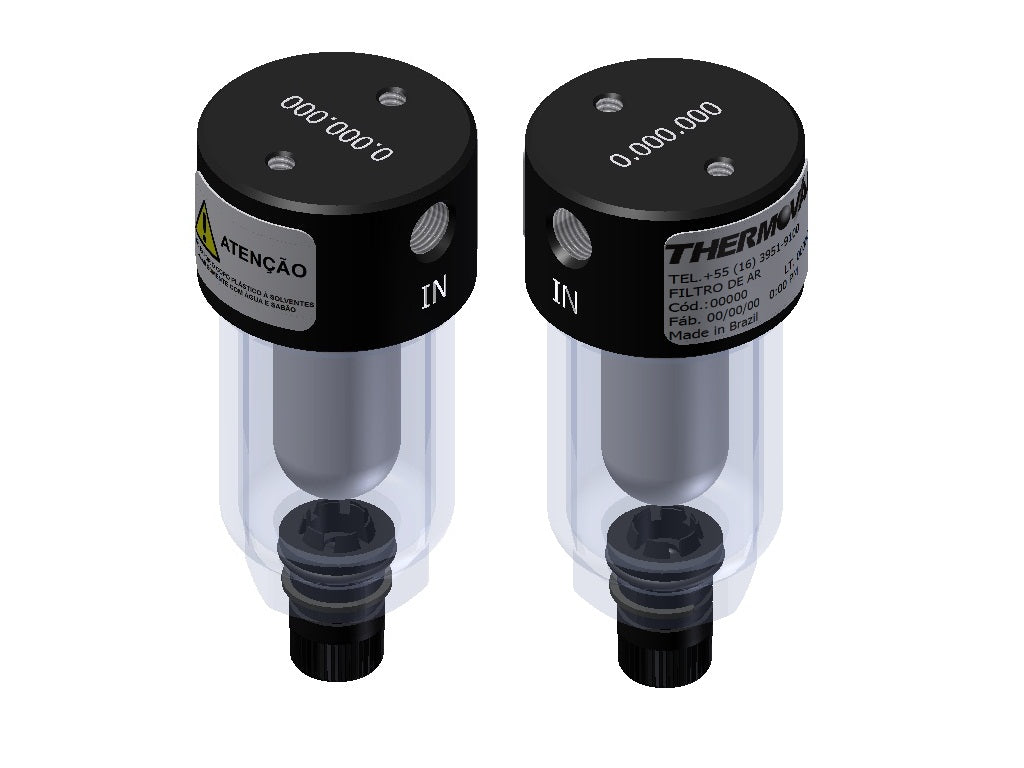

Air Filter - Semi Automatic Drain, 1/8" NPT
Air Filter - Semi Automatic Drain, 1/8" NPT
Regular price
$32.66 USD
Regular price
$32.66 USD
Sale price
$32.66 USD
Unit price
/
per
Couldn't load pickup availability
OPERATION
Air Filter - Semi Automatic Drain
Filtering: 30 a 50 Microns M
Cup Capacity: 4 cl
Maximum Flow: 300 L/Min
CONNECTION
Connection Female 1/8" NPT (ANSI B2.1) - Inlet.
Connection Female 1/8" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 8,0 mm - ( Kv 1,1 ) Flow Factor.
MATERIAL Body - Aluminum (ASTM B211) - Surface in Epoxi.
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
NOT APPLICABLE
NOT APPLICABLE
NOT APPLICABLE
NOT APPLICABLE
MAIN APPLICATIONS
Air/Oxygen
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 180
SPECIAL FEATURES
Body Zamac material and cup policarbonate material.
Temperature of work: 60°C
Flow Rate: 550 L/min
Cup Capacity: 3,6 cl
Filter: 25μm until 40μm
Drain: Semi-automatic
WEIGHT (KG) 0,08900
WARRANTY 1 Year
Air Filter - Semi Automatic Drain
Filtering: 30 a 50 Microns M
Cup Capacity: 4 cl
Maximum Flow: 300 L/Min
CONNECTION
Connection Female 1/8" NPT (ANSI B2.1) - Inlet.
Connection Female 1/8" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 8,0 mm - ( Kv 1,1 ) Flow Factor.
MATERIAL Body - Aluminum (ASTM B211) - Surface in Epoxi.
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
NOT APPLICABLE
NOT APPLICABLE
NOT APPLICABLE
NOT APPLICABLE
MAIN APPLICATIONS
Air/Oxygen
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 180
SPECIAL FEATURES
Body Zamac material and cup policarbonate material.
Temperature of work: 60°C
Flow Rate: 550 L/min
Cup Capacity: 3,6 cl
Filter: 25μm until 40μm
Drain: Semi-automatic
WEIGHT (KG) 0,08900
WARRANTY 1 Year
