Thermoval

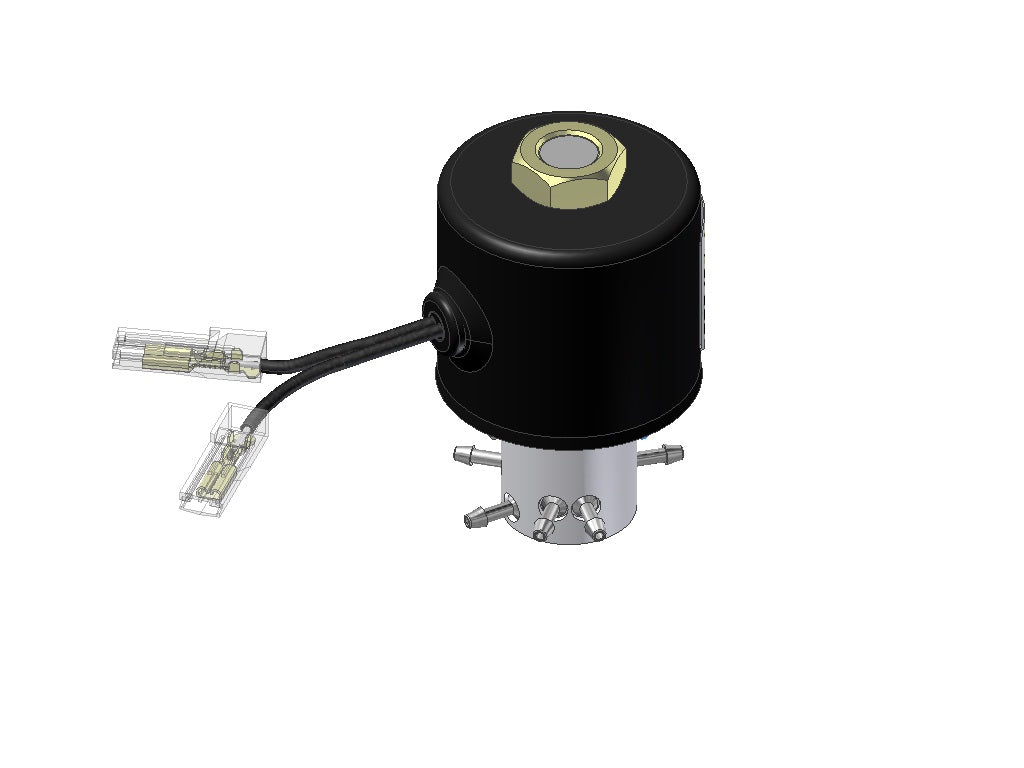

2-Way Normally Closed ---> Open when energized.
2-Way Normally Closed ---> Open when energized.
Regular price
$39.56 USD
Regular price
$39.56 USD
Sale price
$39.56 USD
Unit price
/
per
Couldn't load pickup availability
OPERATION: 2-Way Normally Closed Insulated Core -> Open when energized.
THREAD: Cable gland with
ORIFICE: Ø 1.2 mm - ( Kv 0.05)
SEALING: Silicone seal (SI)
FLUIDS: Air, high-temperature gases, non-toxic for water, dairy products, beer and soft drinks. Other applications consult compatibility.
BODY: Body - Polyvinyl Chloride (PVC) - Natural.Plunger/Pole - Steel (SAE 12L14/Alloy 1214) - Cr+3 White Zinc Treatment.Spring - Stainless Steel (AISI 302).Wire - Enameled Copper Class HR 200°C
PRESSURE: Min. 0 / Max. 40
VOLTAGE: 12 V 50/60 Hz
POWER: 12 W
CONNECTION: Cable 350 mm + - 10mm w/ FASTON Female Terminal Series 2.8×0.5
WARRANTY: 1 year
WEIGHT (kg): 0.17
THREAD: Cable gland with
ORIFICE: Ø 1.2 mm - ( Kv 0.05)
SEALING: Silicone seal (SI)
FLUIDS: Air, high-temperature gases, non-toxic for water, dairy products, beer and soft drinks. Other applications consult compatibility.
BODY: Body - Polyvinyl Chloride (PVC) - Natural.Plunger/Pole - Steel (SAE 12L14/Alloy 1214) - Cr+3 White Zinc Treatment.Spring - Stainless Steel (AISI 302).Wire - Enameled Copper Class HR 200°C
PRESSURE: Min. 0 / Max. 40
VOLTAGE: 12 V 50/60 Hz
POWER: 12 W
CONNECTION: Cable 350 mm + - 10mm w/ FASTON Female Terminal Series 2.8×0.5
WARRANTY: 1 year
WEIGHT (kg): 0.17
