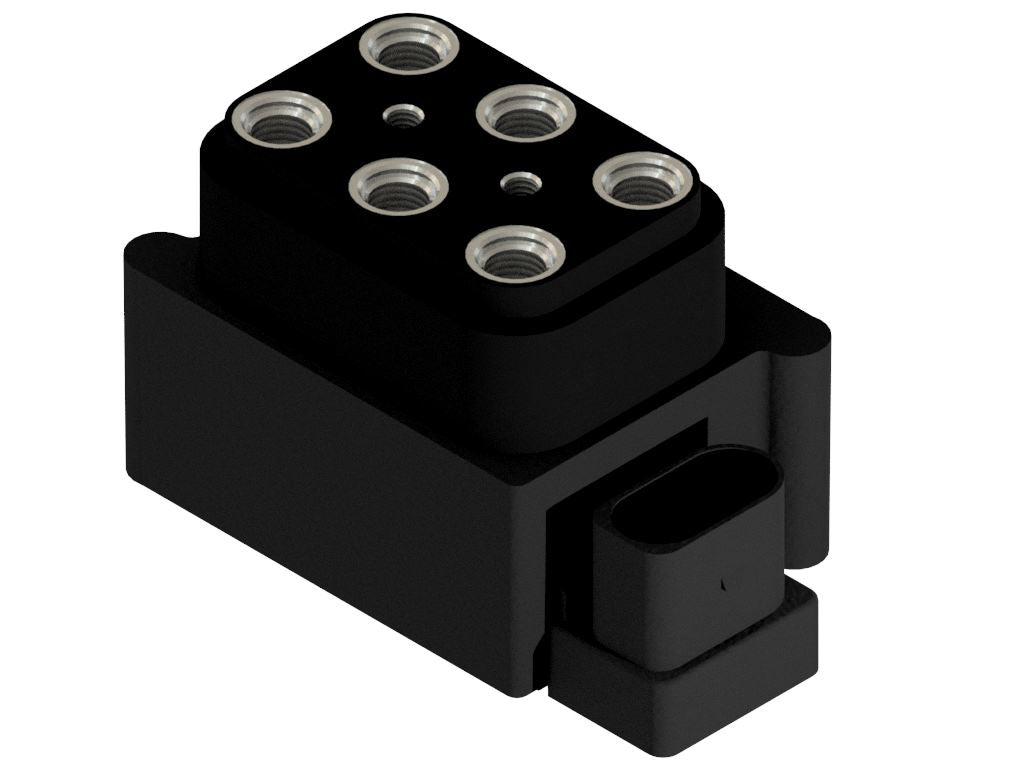

Thermoval 29000 - Porsche Macan (95B) 2015 - 2023 Suspension Air Supply Solenoid Valve Block (7P0616014).
Thermoval 29000 - Porsche Macan (95B) 2015 - 2023 Suspension Air Supply Solenoid Valve Block (7P0616014).
Regular price
$343.00 CAD
Regular price
$343.00 CAD
Sale price
$343.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION | Manifold Composition for 5 Valves 2/2 NC |
CONNECTION | Connection Female M 10 x 1,0mm (ISO 724/965.1) - Inlet Connection Female M 10 x 1,0mm (ISO 724/965.1) - Outlet |
ORIFICE | Ø 0,8 mm - ( Kv 0,02 ) Flow Factor. |
MATERIAL | Body - Aluminum (ASTM B211). Plunger/Pole - Stainless Steel (AISI 430 Fr). Spring - Stainless Steel (AISI 302). Wire - Enameled Copper Class HR 200°C (IEC 60317-8). |
SEAL | Seal - Polymer N 30000-7 B (Nitrile) |
ELETRICAL PROPERTIES |
Width 57.0 x Height 31.9 x Length 73.3 x Diam. the Nucleo: 9.2 Protection class: IP 66 Encapsulation: Epoxy Resin 12 VDC 6 W Electrical specifications according to special characteristics. |
MAIN APPLICATIONS | Air/Oxygen * Other applications consult compatibility |
PRESSURE (PSI) | Min. 0 / Max. 150 |
SPECIAL FEATURES | |
WEIGHT (KG) | 0,34200 |
WARRANTY | 1 Year |
