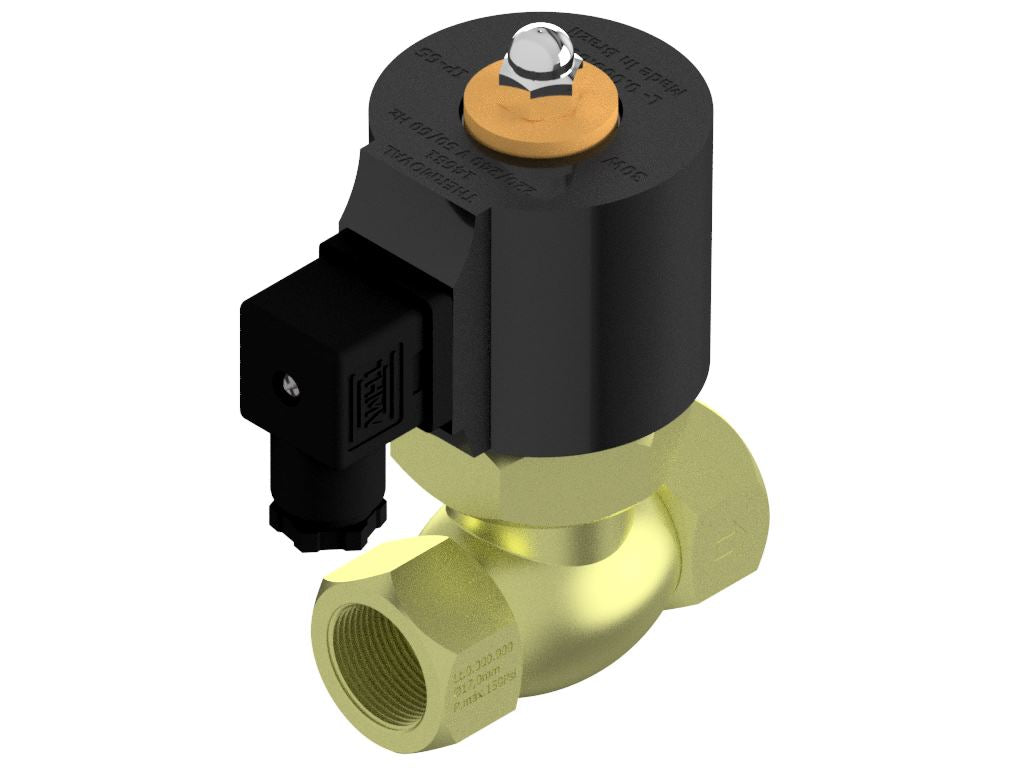

Steam Valve, 2 Way Normally Closed Pilot Operated, 3/4" BSP
Steam Valve, 2 Way Normally Closed Pilot Operated, 3/4" BSP
Regular price
$281.00 CAD
Regular price
$281.00 CAD
Sale price
$281.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION 2 Way Normally Closed Pilot Operated
CONNECTION
Connection Female 3/4" BSP (ISO 228/1) - Inlet.
Connection Female 3/4" BSP (ISO 228/1) - Outlet.
ORIFICE Ø 17,0 mm - (Kv 5,28) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Teflon (PTFE)
ELETRICAL
PROPERTIES
Width 47.0 x Height 57.0 x Length 57.0 x Diam. the Nucleo: 20.0
Protection class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
220/240 V 50/60 Hz
30 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Vapor (180.C)
* Other applications consult compatibility
PRESSURE (PSI) Min. 15 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 1,37400
WARRANTY 1 Year
CONNECTION
Connection Female 3/4" BSP (ISO 228/1) - Inlet.
Connection Female 3/4" BSP (ISO 228/1) - Outlet.
ORIFICE Ø 17,0 mm - (Kv 5,28) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Teflon (PTFE)
ELETRICAL
PROPERTIES
Width 47.0 x Height 57.0 x Length 57.0 x Diam. the Nucleo: 20.0
Protection class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
220/240 V 50/60 Hz
30 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Vapor (180.C)
* Other applications consult compatibility
PRESSURE (PSI) Min. 15 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 1,37400
WARRANTY 1 Year
