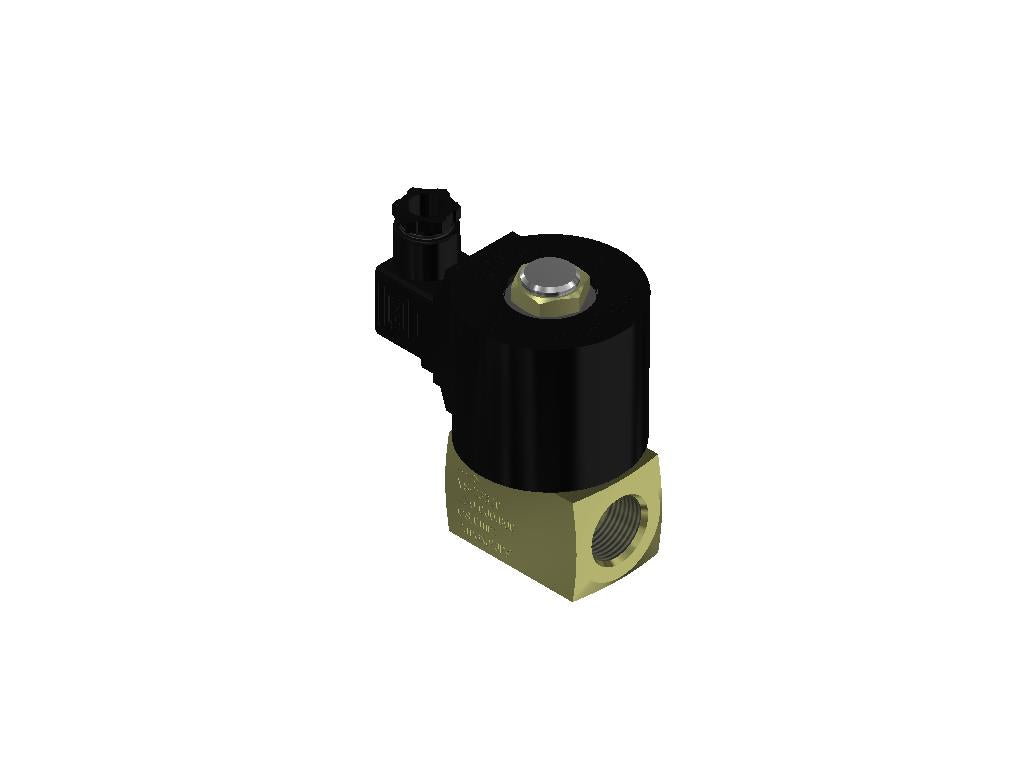

Steam Valve, 2-Way Normally Closed, 3/4" NPT
Steam Valve, 2-Way Normally Closed, 3/4" NPT
Regular price
$244.00 CAD
Regular price
$244.00 CAD
Sale price
$244.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 3/4" NPT (ANSI B2.1) - Inlet.
Connection Female 3/4" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 8,0 mm - ( Kv 1,1 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seals - Teflon (PTFE) and Fluorocarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 47.0 x Height 57.0 x Length 57.0 x Diam. the Nucleo: 20.0
Protection class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
110/127 V 50/60 Hz
24 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Oil Density 0,871 g/cm³ and Viscosity CSt 36,1 Temp.40°C, air, Oxigen, water e Steam the Temp. Max.150°C.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 90
SPECIAL FEATURES SPECIAL BECAUSE IT CONTAINS VALVE COIL LINE 2007
INJECTED
WEIGHT (KG) 1,11900
WARRANTY 1 Year
CONNECTION
Connection Female 3/4" NPT (ANSI B2.1) - Inlet.
Connection Female 3/4" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 8,0 mm - ( Kv 1,1 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seals - Teflon (PTFE) and Fluorocarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 47.0 x Height 57.0 x Length 57.0 x Diam. the Nucleo: 20.0
Protection class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
110/127 V 50/60 Hz
24 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Oil Density 0,871 g/cm³ and Viscosity CSt 36,1 Temp.40°C, air, Oxigen, water e Steam the Temp. Max.150°C.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 90
SPECIAL FEATURES SPECIAL BECAUSE IT CONTAINS VALVE COIL LINE 2007
INJECTED
WEIGHT (KG) 1,11900
WARRANTY 1 Year
