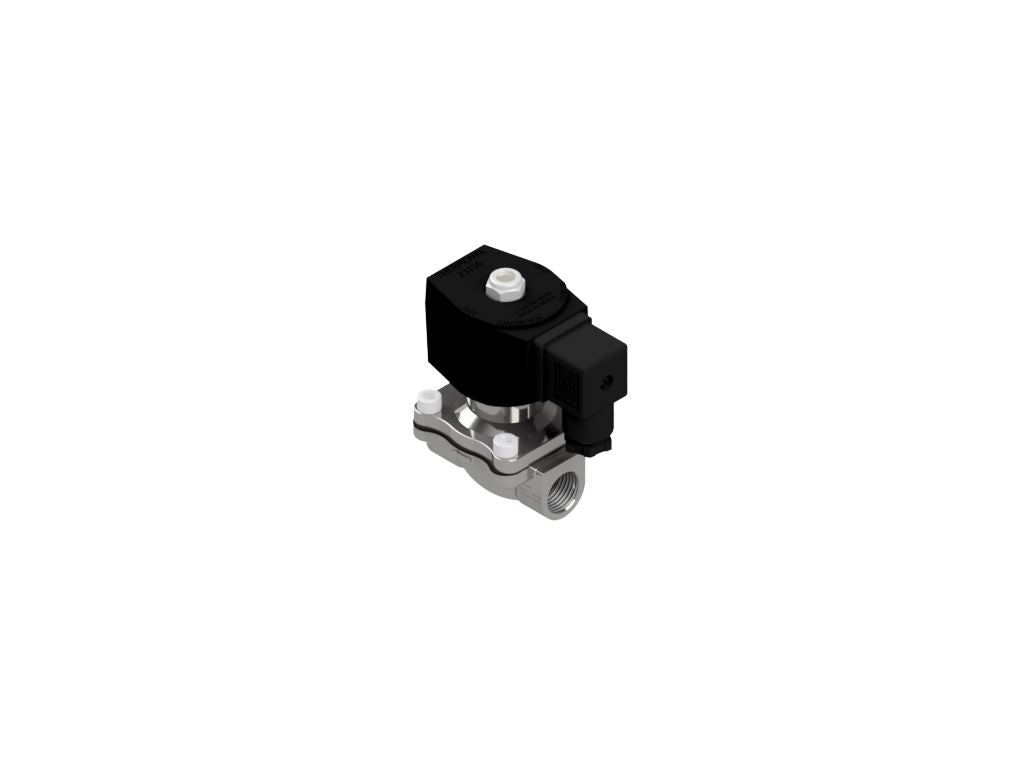

Stainless Valve, 2-Way Normally Closed, 1/2" NPT

Stainless Valve, 2-Way Normally Closed, 1/2" NPT

Regular price $238.00 CAD
Regular price $238.00 CAD Sale price $238.00 CAD
Sale Sold out
OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 1/2" NPT (ANSI B2.1) - Inlet.
Connection Female 1/2" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 16,0 mm - (Kv 4,65) Flow Factor
MATERIAL
Body/Solenoid Tube - Stainless Steel (AISI 316).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 47.5 x Height 42.0 x Length 59.5 x Diam. the Nucleo 17x34mm e 10,5x3mm.
Protection class:IP65.
Encapsulation: Polyamide 6 (30% glass fiber black color)
220/240 V 50/60 Hz
20 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Fluid of silica, air, lubricant to the base of Di-Ester, liquid petroleum gas(LGP), H2O, Ethanol, natural gas and cold
oxygen gas.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 0,81300
WARRANTY 1 Year
