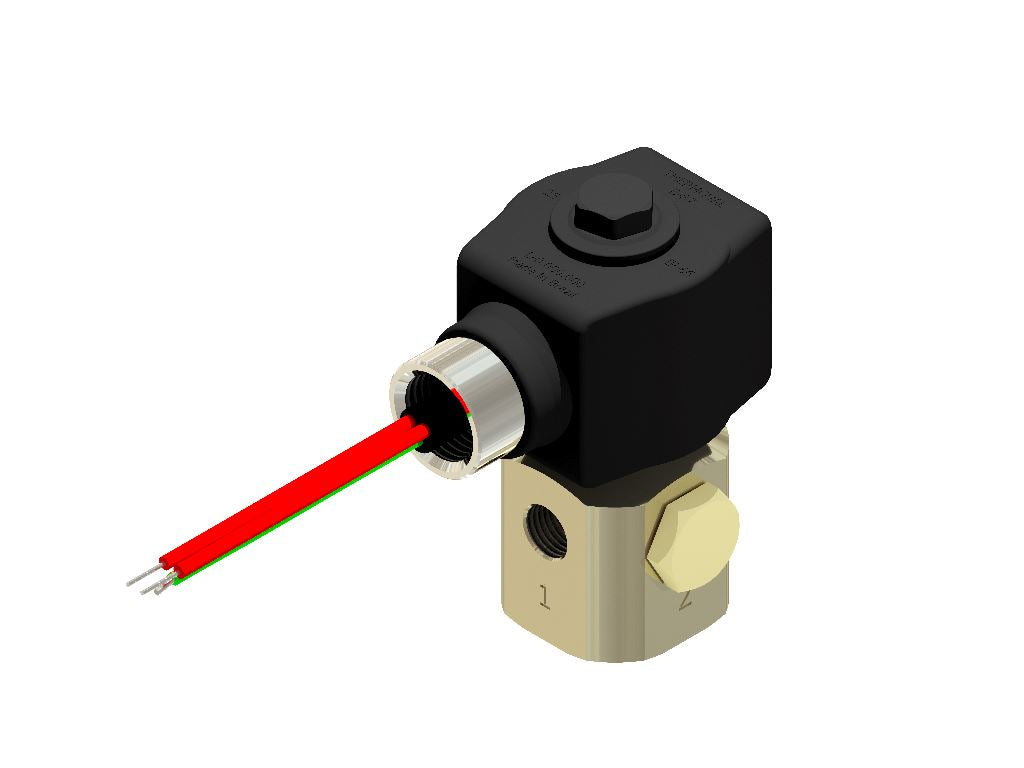

Solenoid Valve, UNIVERSAL 3 WAY, 1/8" NPT
Solenoid Valve, UNIVERSAL 3 WAY, 1/8" NPT
Regular price
$126.00 CAD
Regular price
$126.00 CAD
Sale price
$126.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION UNIVERSAL 3 WAY
CONNECTION
Connection Female 1/8" NPT (ANSI B2.1) - Inlet.
Connection Female 1/8" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 2,5 mm - ( Kv 0,18 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Dimensions (mm):
core diameter: 16,8; width: 45,5; length: 76,5; height: 41.
Protection Class: IP 66.
POLYAMIDE with 30% of fiberglass polymer encapsulation
24 VDC
25 W
Tinned Copper Cable with 500 + -10 (mm).
MAIN APPLICATIONS
Oils at high temperature (100 a 150 °C), silicon lubricant, air, LPG, NVG, Di-ester-based lubricant, Oxigen, water and
Steam.
* Other applications consult compatibility
PRESSURE (PSI)
1 - MÁX. 150 Psi - 2 WAY NA IN 2, OUT 3
2 - MÁX. 150 Psi - 2 WAY NF IN 3, OUT 1, WITH CAP 2
3 - MÁX. 150 Psi - 3 WAY NA IN 2, OUT 3, ESCAP. 1
4 - MÁX. 150 Psi - 3 WAY NF IN 1, OUT 3, ESCAP. 2
SPECIAL FEATURES Valve for the United States market
WEIGHT (KG) 0,72500
WARRANTY 1 Year
CONNECTION
Connection Female 1/8" NPT (ANSI B2.1) - Inlet.
Connection Female 1/8" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 2,5 mm - ( Kv 0,18 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Dimensions (mm):
core diameter: 16,8; width: 45,5; length: 76,5; height: 41.
Protection Class: IP 66.
POLYAMIDE with 30% of fiberglass polymer encapsulation
24 VDC
25 W
Tinned Copper Cable with 500 + -10 (mm).
MAIN APPLICATIONS
Oils at high temperature (100 a 150 °C), silicon lubricant, air, LPG, NVG, Di-ester-based lubricant, Oxigen, water and
Steam.
* Other applications consult compatibility
PRESSURE (PSI)
1 - MÁX. 150 Psi - 2 WAY NA IN 2, OUT 3
2 - MÁX. 150 Psi - 2 WAY NF IN 3, OUT 1, WITH CAP 2
3 - MÁX. 150 Psi - 3 WAY NA IN 2, OUT 3, ESCAP. 1
4 - MÁX. 150 Psi - 3 WAY NF IN 1, OUT 3, ESCAP. 2
SPECIAL FEATURES Valve for the United States market
WEIGHT (KG) 0,72500
WARRANTY 1 Year
