Thermoval

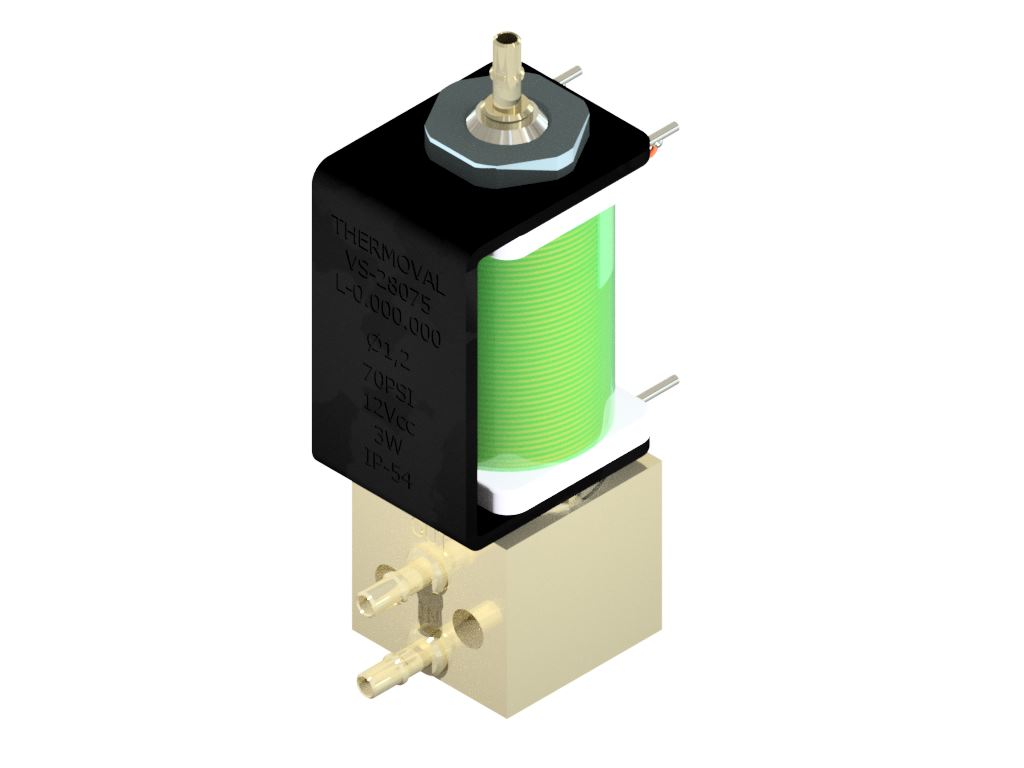

Solenoid Valve 3 way, Normally Closed, Spigot Ø 2,0 mm, 12V
Solenoid Valve 3 way, Normally Closed, Spigot Ø 2,0 mm, 12V
Regular price
$87.00 CAD
Regular price
$87.00 CAD
Sale price
$87.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION 3-Way Normally Closed
CONNECTION
Spigot Ø 2,0 mm for Flexible Tube 2,0 mm - 0,059" - inlet.
Spigot Ø 2,0 mm for Flexible Tube 2,0 mm - 0,059" - Outlet.
Spigot Ø 2,0 mm for Flexible Tube 2,0 mm - 0,059" - Escape.
ORIFICE Ø 1,2 mm - ( Kv 0,05 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 15,8 x Height 24,4 x Length 15,8 x Diam. the Nucleo: 8,0
Protection class: IP 54
12 VDC
3 W
Electrical specifications according to special characteristics.
MAIN APPLICATIONS
Fluid of silica, air, lubricant to the base of Di-Ester, liquid petroleum gas(LGP), H2O, Ethanol, natural gas and cold
oxygen gas.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 70
SPECIAL FEATURES
WEIGHT (KG) 0,05800
WARRANTY 1 Year
CONNECTION
Spigot Ø 2,0 mm for Flexible Tube 2,0 mm - 0,059" - inlet.
Spigot Ø 2,0 mm for Flexible Tube 2,0 mm - 0,059" - Outlet.
Spigot Ø 2,0 mm for Flexible Tube 2,0 mm - 0,059" - Escape.
ORIFICE Ø 1,2 mm - ( Kv 0,05 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 15,8 x Height 24,4 x Length 15,8 x Diam. the Nucleo: 8,0
Protection class: IP 54
12 VDC
3 W
Electrical specifications according to special characteristics.
MAIN APPLICATIONS
Fluid of silica, air, lubricant to the base of Di-Ester, liquid petroleum gas(LGP), H2O, Ethanol, natural gas and cold
oxygen gas.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 70
SPECIAL FEATURES
WEIGHT (KG) 0,05800
WARRANTY 1 Year
