Thermoval

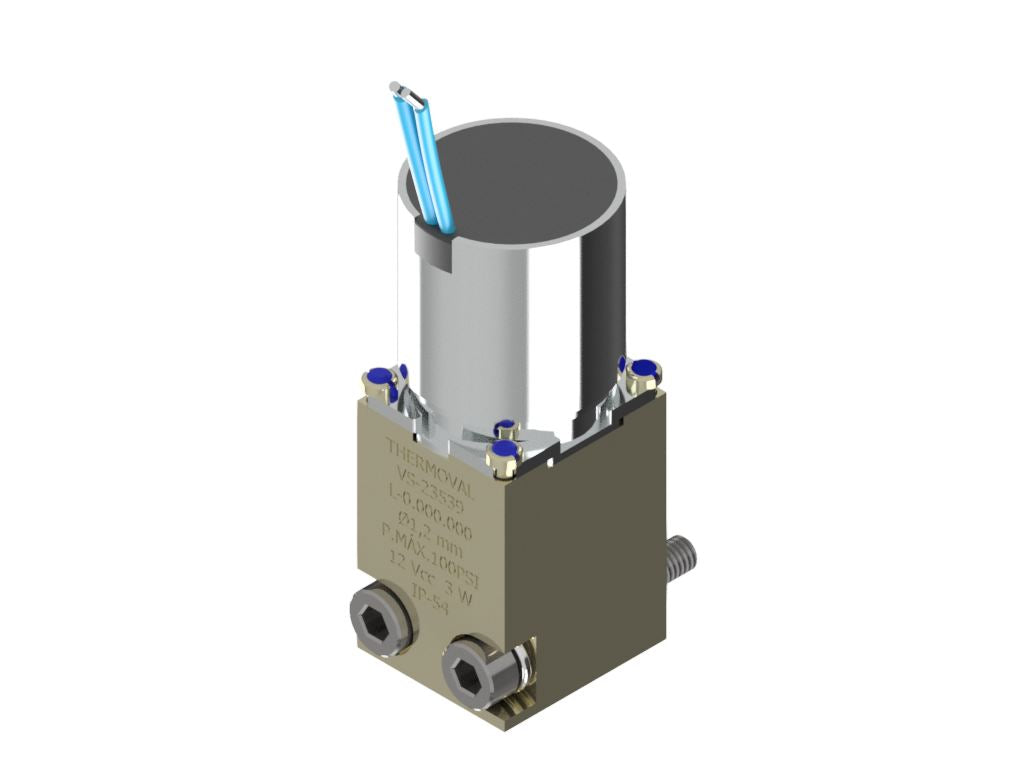

Solenoid Valve 2way Proportional
Solenoid Valve 2way Proportional
Regular price
$546.00 CAD
Regular price
$546.00 CAD
Sale price
$546.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION
2 Ways Proportional
CONNECTION
Hole 4.0mm - Inlet.
Hole 4.0mm - Outlet.
ORIFICE Ø 1,2 mm - ( Kv 0,05 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Pluguer/Pole/Seat Orifice - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 13,4 x Height 11,5 x Diam. the Nucleo: 6,0
Protection class: IP 54
12 VDC
3 W
Tinned Handle with 300 + -10 (mm).
MAIN APPLICATIONS
Air/Oxygen
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 100
SPECIAL FEATURES Proportional Valve - 30 L /
Min
WEIGHT (KG) 0,06300
WARRANTY 1 Year
2 Ways Proportional
CONNECTION
Hole 4.0mm - Inlet.
Hole 4.0mm - Outlet.
ORIFICE Ø 1,2 mm - ( Kv 0,05 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Pluguer/Pole/Seat Orifice - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 13,4 x Height 11,5 x Diam. the Nucleo: 6,0
Protection class: IP 54
12 VDC
3 W
Tinned Handle with 300 + -10 (mm).
MAIN APPLICATIONS
Air/Oxygen
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 100
SPECIAL FEATURES Proportional Valve - 30 L /
Min
WEIGHT (KG) 0,06300
WARRANTY 1 Year
