Thermoval

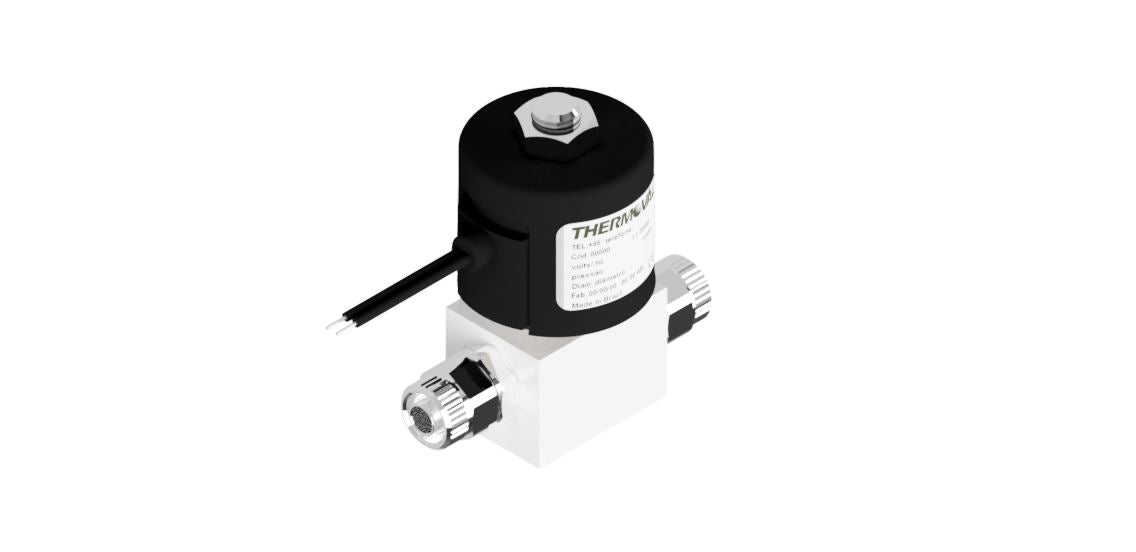

Solenoid Valve, 2way, Normally Closed, Viton Seal, 12V
Solenoid Valve, 2way, Normally Closed, Viton Seal, 12V
Regular price
$77.00 CAD
Regular price
$77.00 CAD
Sale price
$77.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Spigot Ø 7,8 mm with nut for fixation of the flexible tube 7.0 mm - Inlet.
Spigot Ø 7,8 mm with nut for fixation of the flexible tube 7.0 mm - Outlet.
ORIFICE Ø 2,5 mm - ( Kv 0,18 ) Flow Factor.
MATERIAL
Body - Polyacetal (POM).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Diameter 37.0 x Height 32.5 x Diam. the Nucleo: 12.0
Protection Class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
12 VDC
5 W
Tinned Handle with 320 + -10 (mm).
MAIN APPLICATIONS
Oils at high temperature (100 a 150 °C), silicon lubricant, air, LPG, NVG, Di-ester-based lubricant, Oxigen, water and
Steam.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 90
SPECIAL FEATURES
WEIGHT (KG) 0,24020
WARRANTY 1 Year
CONNECTION
Spigot Ø 7,8 mm with nut for fixation of the flexible tube 7.0 mm - Inlet.
Spigot Ø 7,8 mm with nut for fixation of the flexible tube 7.0 mm - Outlet.
ORIFICE Ø 2,5 mm - ( Kv 0,18 ) Flow Factor.
MATERIAL
Body - Polyacetal (POM).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Diameter 37.0 x Height 32.5 x Diam. the Nucleo: 12.0
Protection Class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
12 VDC
5 W
Tinned Handle with 320 + -10 (mm).
MAIN APPLICATIONS
Oils at high temperature (100 a 150 °C), silicon lubricant, air, LPG, NVG, Di-ester-based lubricant, Oxigen, water and
Steam.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 90
SPECIAL FEATURES
WEIGHT (KG) 0,24020
WARRANTY 1 Year
