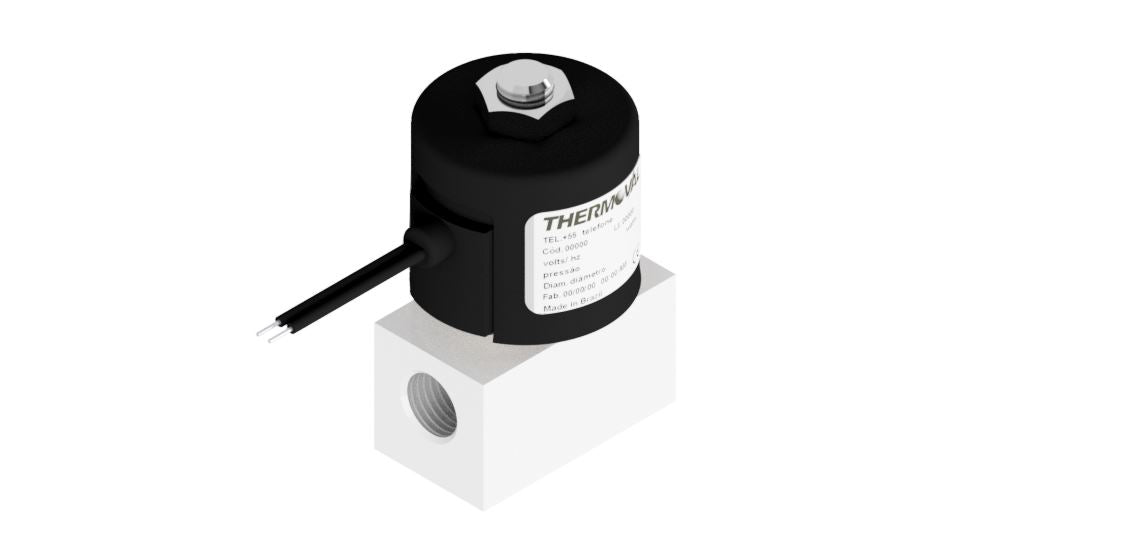

Solenoid Valve 2way, Normally Closed, 1/4" NPT, 24V

OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 1/4" NPT (ANSI B2.1) - Inlet.
Connection Female 1/4" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 2,5 mm - ( Kv 0,18 ) Flow Factor.
MATERIAL
Body - Polyacetal (POM).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Diameter 37.0 x Height 32.5 x Diam. the Nucleo: 12.0
Protection Class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
24 VDC
6 W
Tinned Handle with 280 + -10 (mm).
MAIN APPLICATIONS
Oils at high temperature (100 a 150 °C), silicon lubricant, air, LPG, NVG, Di-ester-based lubricant, Oxigen, water and
Steam.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 90
WEIGHT (KG) 0,20320
WARRANTY 1 Year
