Thermoval

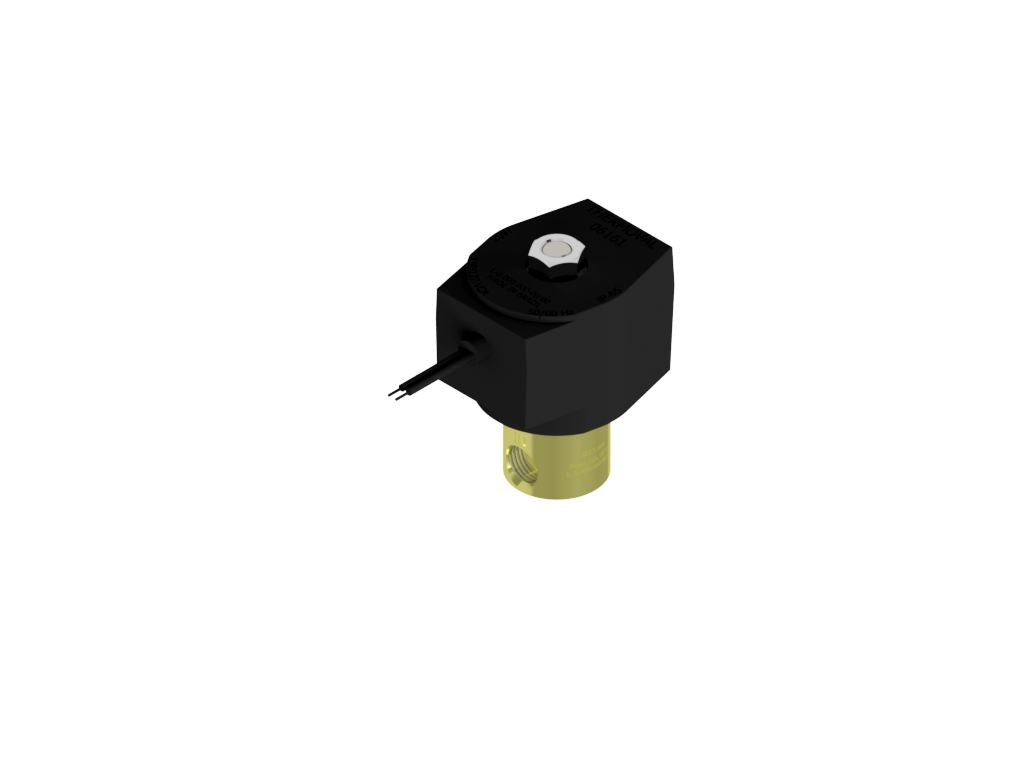

Solenoid Valve, 2Way, Normally Closed, 1/4" BSP, 127V

Solenoid Valve, 2Way, Normally Closed, 1/4" BSP, 127V

Regular price $69.00 CAD
Regular price $69.00 CAD Sale price $69.00 CAD
Sale Sold out
OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 1/4" BSP (ISO 228/1) - Inlet.
Connection Female 1/4" BSP (ISO 228/1) - Outlet.
ORIFICE Ø 3,5 mm - ( Kv 0,31 ) Flow Factor.
MATERIAL
Body - Round Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seals - PTFE Carbon and Fluorocarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 47.5 x Height 42.0 x Length 59.5 x Diam. the Nucleo 17x34mm e 10,5x3mm.
Protection class:IP65.
Encapsulation: Polyamide 6 (30% glass fiber black color)
110/127 V 50/60 Hz
20 W
Tinned cable
Length: 400mm + - 25mm
MAIN APPLICATIONS
Oils at high temperature, solvent, silicon fluid, air, GLP, GNV, Di-Ester-lubricant based,Oxigen and steam (180°C).
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 40
SPECIAL FEATURES
WEIGHT (KG) 0,28900
WARRANTY 1 Year
