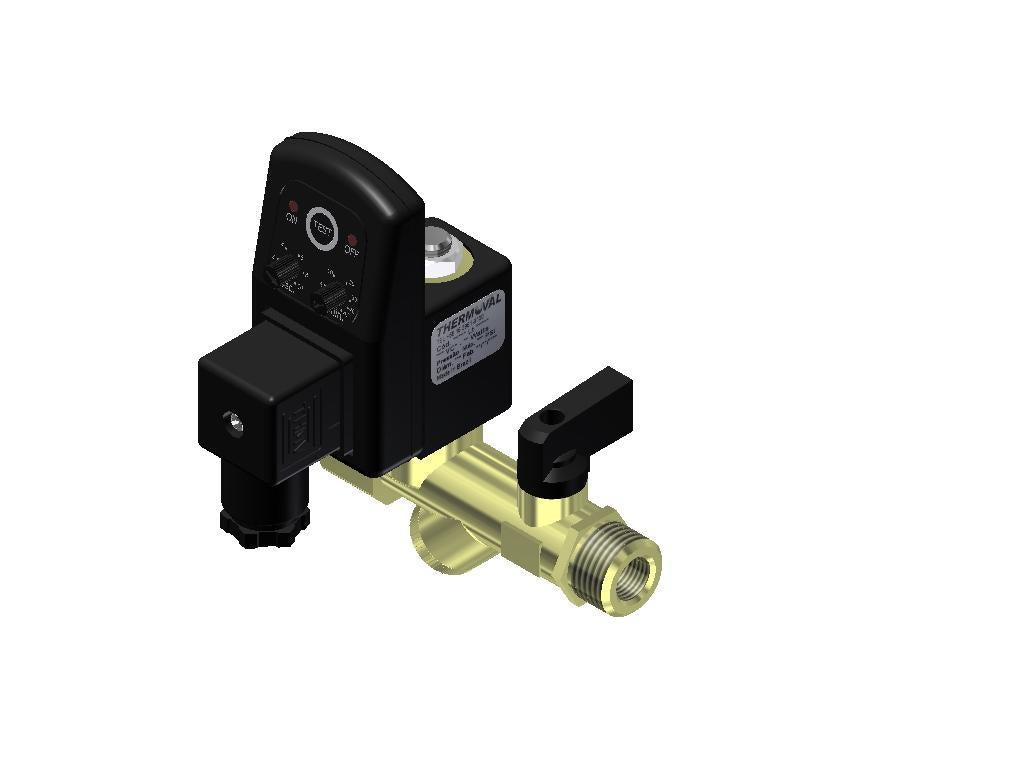

Solenoid Valve 2way NC with Timer, Connection Male 1/2" BSP Female 1/4" BSP, 110/127 V

OPERATION 2-Way Normally Closed with Timer (On: 0,5 to 10 Seconds / Off: 0,5 to 45 Minutes)
CONNECTION
Connection Male 1/2" BSP and Connection Female 1/4" BSP (ISO 228/1 - Inlet.
Connection Female 1/2" BSP (ISO 228/1) - Outlet.
ORIFICE Ø 3,5 mm - ( Kv 0,31 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 36.0 x Height 42.5 x Length 44.5 x Diam. the core: 14.5
Protection class: IP 54 (C / DIN 43650A connector IP 65)
Encapsulation: Polyamide 6 (30% glass fiber black color)
110/127 V 50/60 Hz
20 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Oils at high temperature (100 a 150 °C), silicon lubricant, air, LPG, NVG, Di-ester-based lubricant, Oxigen, water and
Steam.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 240
SPECIAL FEATURES Special line
2007
WEIGHT (KG) 0,55000
WARRANTY 1 Year
