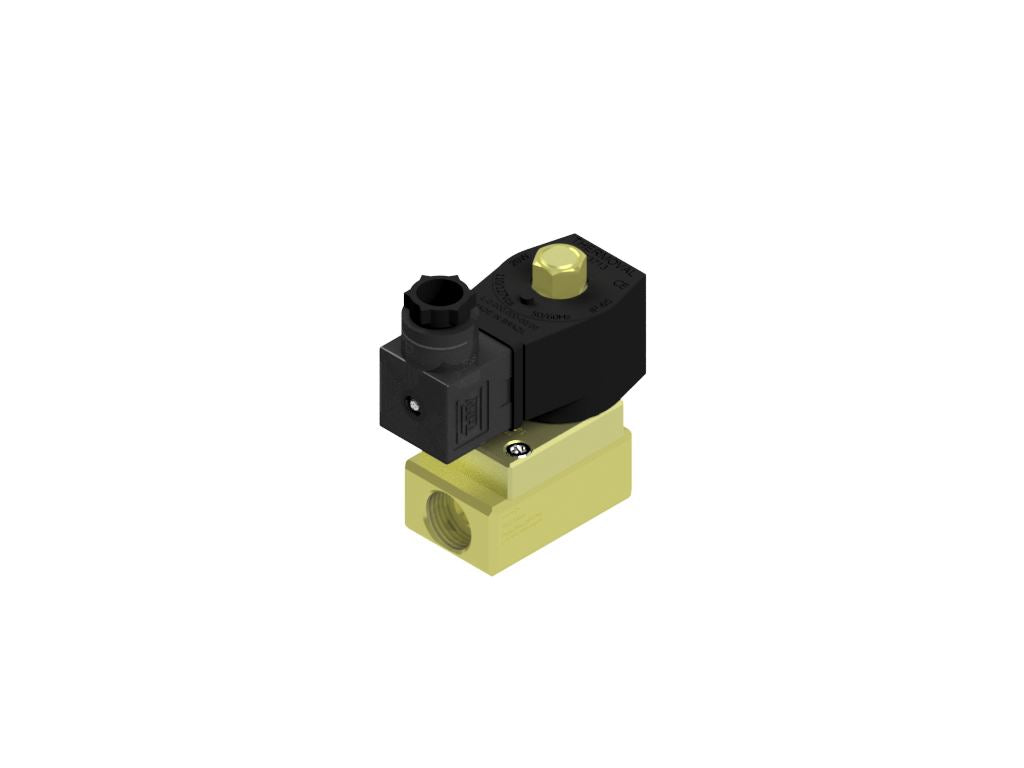

Solenoid Valve 2 Way Normally Open Pilot Operated 1/2" BSP
Solenoid Valve 2 Way Normally Open Pilot Operated 1/2" BSP
Regular price
$228.00 CAD
Regular price
$228.00 CAD
Sale price
$228.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION 2 Way Normally Open Pilot Operated
CONNECTION
Connection Female 1/2" BSP (ISO 228/1) - Inlet.
Connection Female 1/2" BSP (ISO 228/1) - Outlet.
ORIFICE Ø 12,0 mm - (Kv 2,62) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Width 40.0 x Height 36.5 x Length 51.0 x Diam. the Nucleo: 12.7
Protection Class: IP 65 connector DIN 43650A C / Rectifier Diode Mod. S2 - Vrrm 1000V x I (Av) 2.0A
Encapsulation: Polyamide 6
110/127 V 50/60 Hz
20 W
Tinned cable 2x1 with 600mm + - 10mm
MAIN APPLICATIONS
Mineral oils, hydraulic fluids, LGP, NG air and water.
* Other applications consult compatibility
PRESSURE (PSI) Min. 5 / Max. 160
SPECIAL FEATURES
WEIGHT (KG) 0,73100
WARRANTY 1 Year
CONNECTION
Connection Female 1/2" BSP (ISO 228/1) - Inlet.
Connection Female 1/2" BSP (ISO 228/1) - Outlet.
ORIFICE Ø 12,0 mm - (Kv 2,62) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Width 40.0 x Height 36.5 x Length 51.0 x Diam. the Nucleo: 12.7
Protection Class: IP 65 connector DIN 43650A C / Rectifier Diode Mod. S2 - Vrrm 1000V x I (Av) 2.0A
Encapsulation: Polyamide 6
110/127 V 50/60 Hz
20 W
Tinned cable 2x1 with 600mm + - 10mm
MAIN APPLICATIONS
Mineral oils, hydraulic fluids, LGP, NG air and water.
* Other applications consult compatibility
PRESSURE (PSI) Min. 5 / Max. 160
SPECIAL FEATURES
WEIGHT (KG) 0,73100
WARRANTY 1 Year
