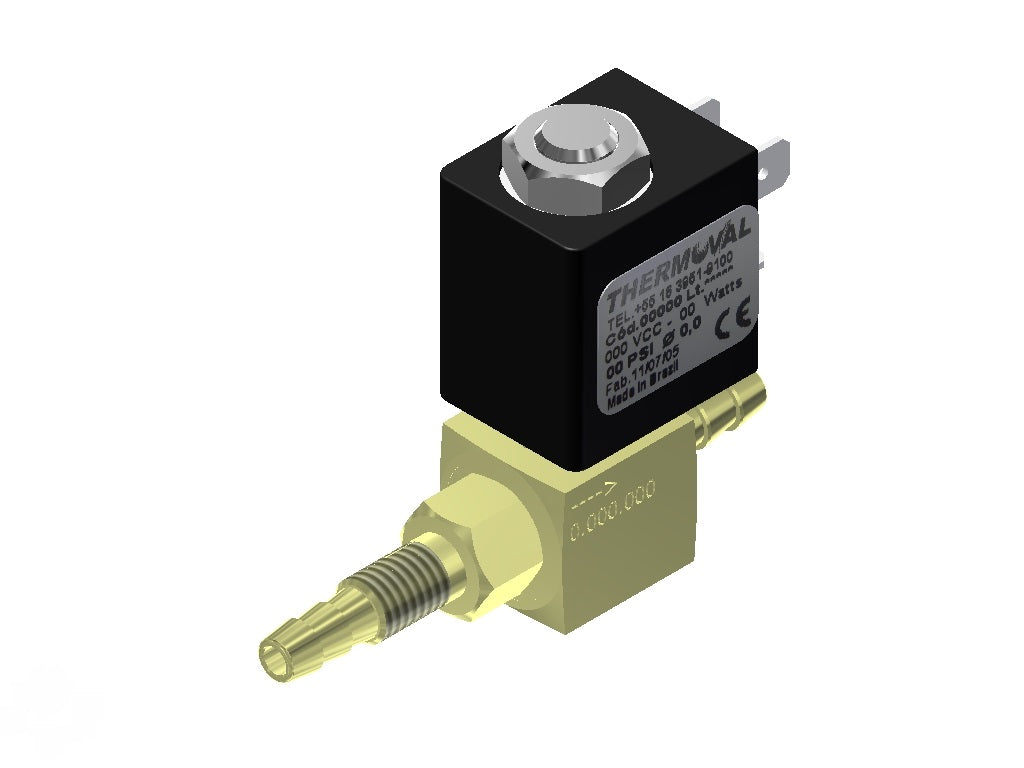

Solenoid Valve 2-Way Normally Closed with Filter and Spigot, Connection Male M 8 x 1,25mm

OPERATION 2-Way Normally Closed with Filter ---> Open when energized.
CONNECTION
Connection Male M 8 x 1,25mm (ISO 724/965.1) with Filter and Spigot
Ø 6,5 mm for Flexible Tube 6,5mm - 1/4" - Inlet.
Spigot Ø 6,5 mm for Flexible Tube 6,5 mm - 1/4" Outlet.
ORIFICE Ø 3,0 mm - ( Kv 0,23 ) Flow factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Width 22.2 x Height 31.0 x Length 29,5 x Diam. the Nucleo: 10.4
Protection class: IP65
Encapsulation: Polyamide 6 (30% fiber) or PPS
110/127 V 50/60 Hz
13 W
Electric connection DIN 43650B Without Connector
MAIN APPLICATIONS
Mineral oils, hydraulic fluids, LGP, NG air and water.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 0,15500
WARRANTY 1 Year
