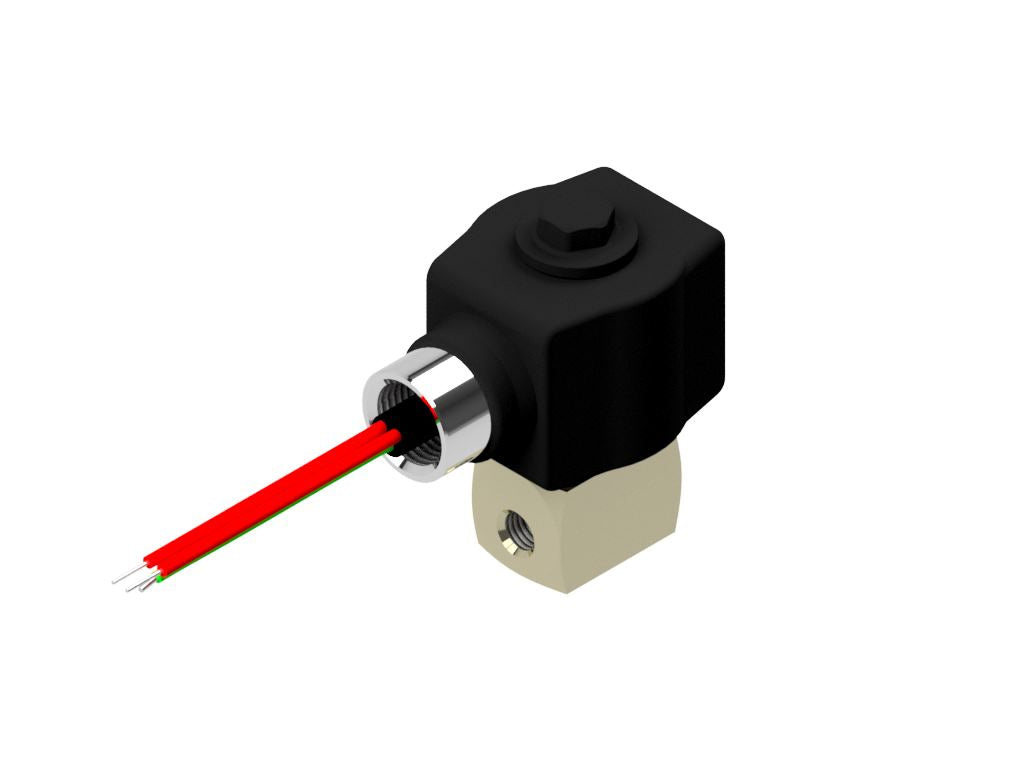

Solenoid Valve 2-Way Normally Closed 1/8" NPT

OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 1/8" NPT (ANSI B2.1) - Inlet.
Connection Female 1/8" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 4,0 mm - ( Kv 0,36 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Dimensions (mm):
core diameter: 16,8; width: 45,5; length: 76,5; height: 41.
Protection Class: IP 66.
POLYAMIDE with 30% of fiberglass polymer encapsulation
110/127 V 50/60 Hz
25 W
Tinned Copper Cable with 500 + -10 (mm).
MAIN APPLICATIONS
Oils at high temperature, solvent, silicon fluid, air, LPG, NVG, Di-ester-based lubricant, Oxigen and (Steam Max. 150
°C).
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 170
SPECIAL FEATURES Valve for the United States
market
WEIGHT (KG) 0,52600
WARRANTY 1 Year
