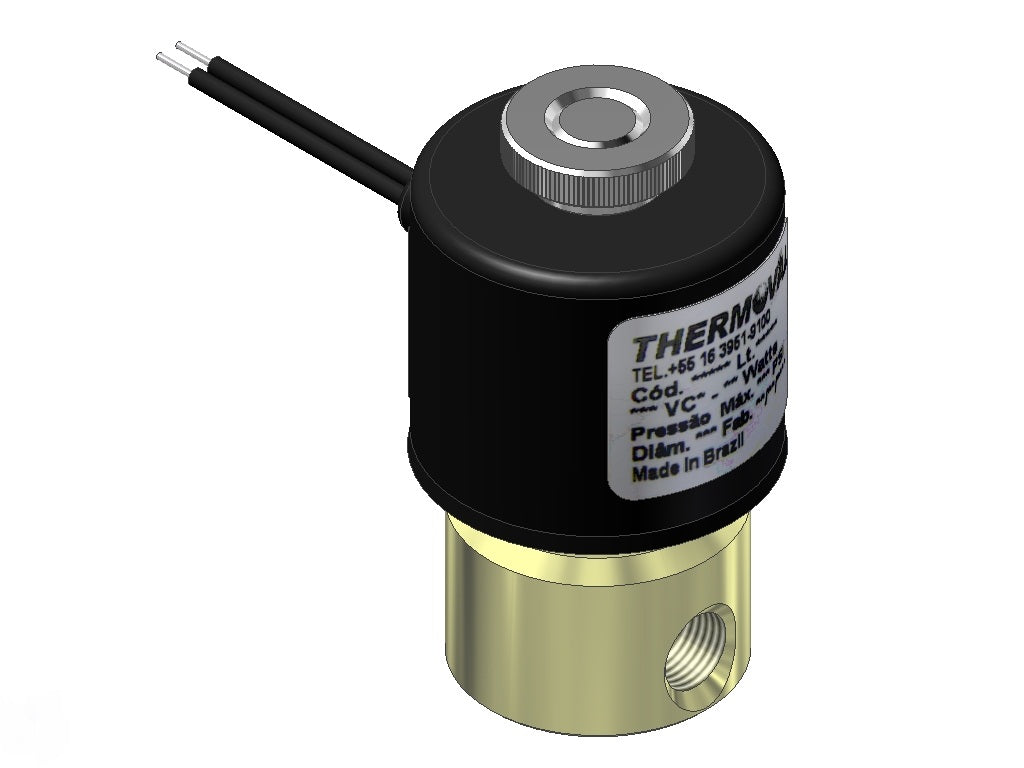

Solenoid Valve 2-Way Normally Closed 1/8" NPT

OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 1/8" NPT (ANSI B2.1) - Inlet.
Connection Female 1/8" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 3,5 mm - ( Kv 0,31 ) Flow Factor.
MATERIAL
Body - Round Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Diameter 37.0 x Height 32.5 x Diam. the Nucleo: 12.0
Protection Class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
220/240 V 50/60 Hz
13 W
Tinned Handle with 170 + -10 (mm).
MAIN APPLICATIONS
Oils at high temperature (100 a 150 °C), silicon lubricant, air, LPG, NVG, Di-ester-based lubricant, Oxigen, water and
Steam.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 0,26900
WARRANTY 1 Year
