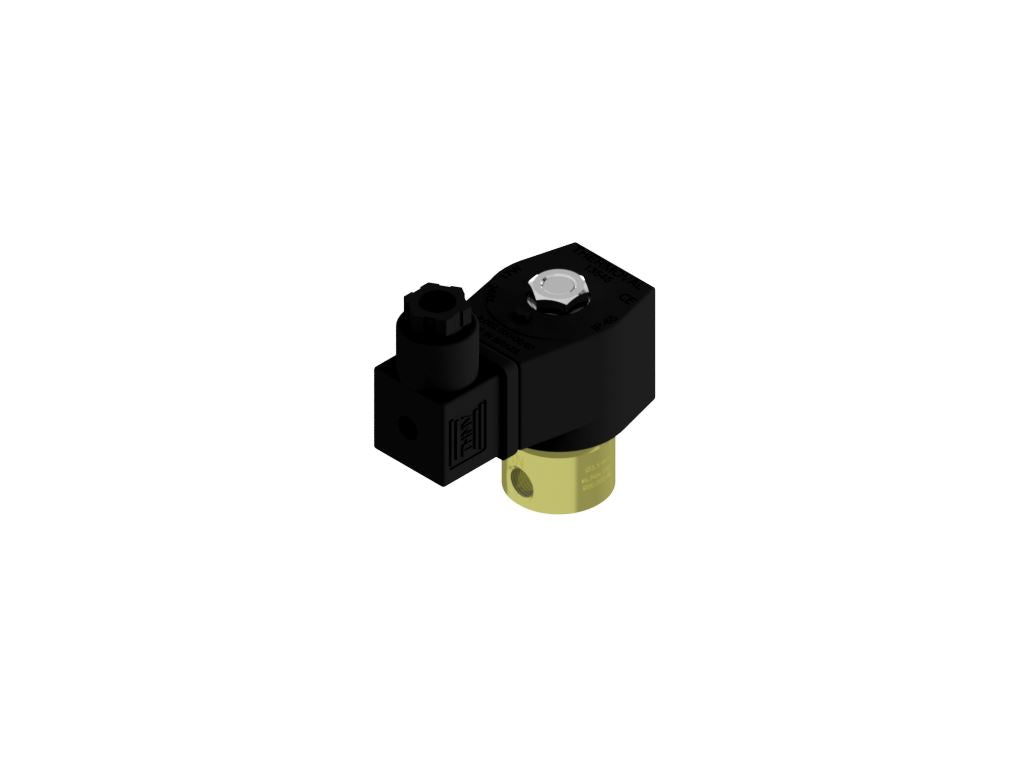

Solenoid Valve 2-Way Normally Closed 1/8" NPT
Solenoid Valve 2-Way Normally Closed 1/8" NPT
Regular price
$78.00 CAD
Regular price
$78.00 CAD
Sale price
$78.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 1/8" NPT (ANSI B2.1) - Inlet.
Connection Female 1/8" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 3,5 mm - ( Kv 0,31 ) Flow Factor.
MATERIAL
Body - Round Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 40.0 x Height 36.5 x Length 51.0 x Diam. the Nucleo: 11.5
Protection Class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
24 VDC
17 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Oils at high temperature (100 a 150 °C), silicon lubricant, air, LPG, NVG, Di-ester-based lubricant, Oxigen, water and
Steam.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 0,31500
WARRANTY 1 Year
CONNECTION
Connection Female 1/8" NPT (ANSI B2.1) - Inlet.
Connection Female 1/8" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 3,5 mm - ( Kv 0,31 ) Flow Factor.
MATERIAL
Body - Round Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 40.0 x Height 36.5 x Length 51.0 x Diam. the Nucleo: 11.5
Protection Class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
24 VDC
17 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Oils at high temperature (100 a 150 °C), silicon lubricant, air, LPG, NVG, Di-ester-based lubricant, Oxigen, water and
Steam.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 0,31500
WARRANTY 1 Year
