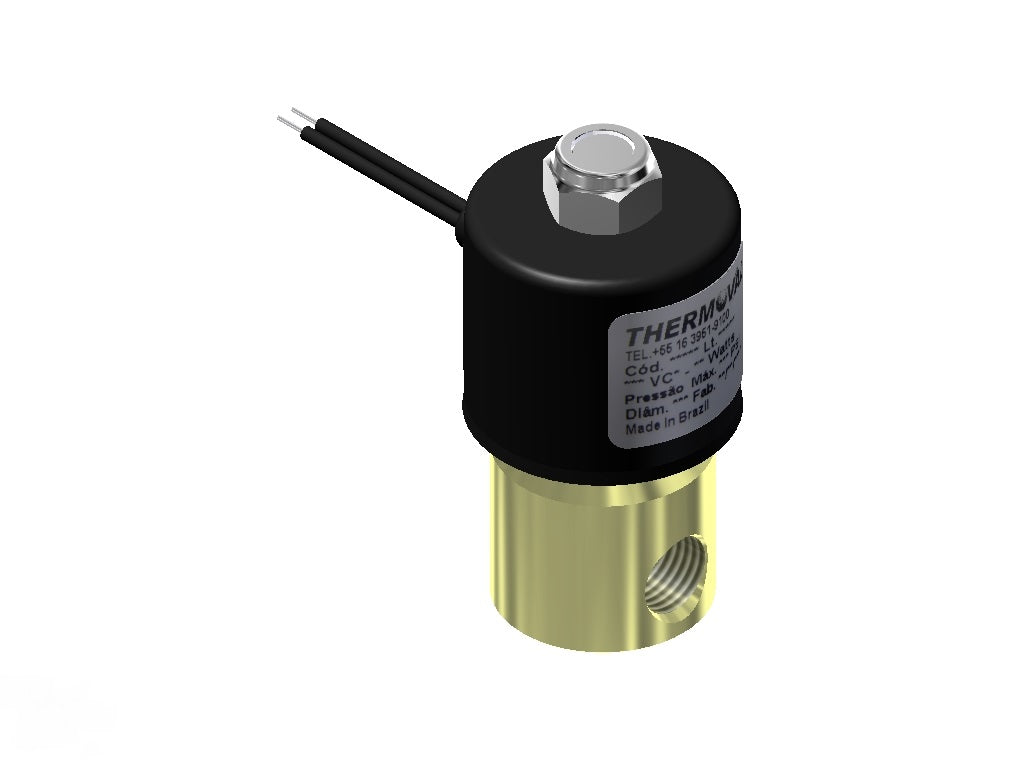

Solenoid Valve 2-Way Normally Closed 1/4" NPT

OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 1/4" NPT (ANSI B2.1) - Inlet.
Connection Female 1/4" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 5,0 mm - ( Kv 0,46 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Solenoid Tube - Stainless Steel (AISI 303/304).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Diameter 37.0 x Height 32.5 x Diam. the Nucleo: 12.0
Protection Class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
110/127 V 50/60 Hz
17 W
Tinned Handle with 200 + -10 (mm).
MAIN APPLICATIONS
Mineral oils, hydraulic fluids, LGP, NG air and water.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 70
SPECIAL FEATURES VALVE IS THE COURSE OF THE ABOVE 23%
IDEAL
WEIGHT (KG) 0,31200
WARRANTY 1 Year
