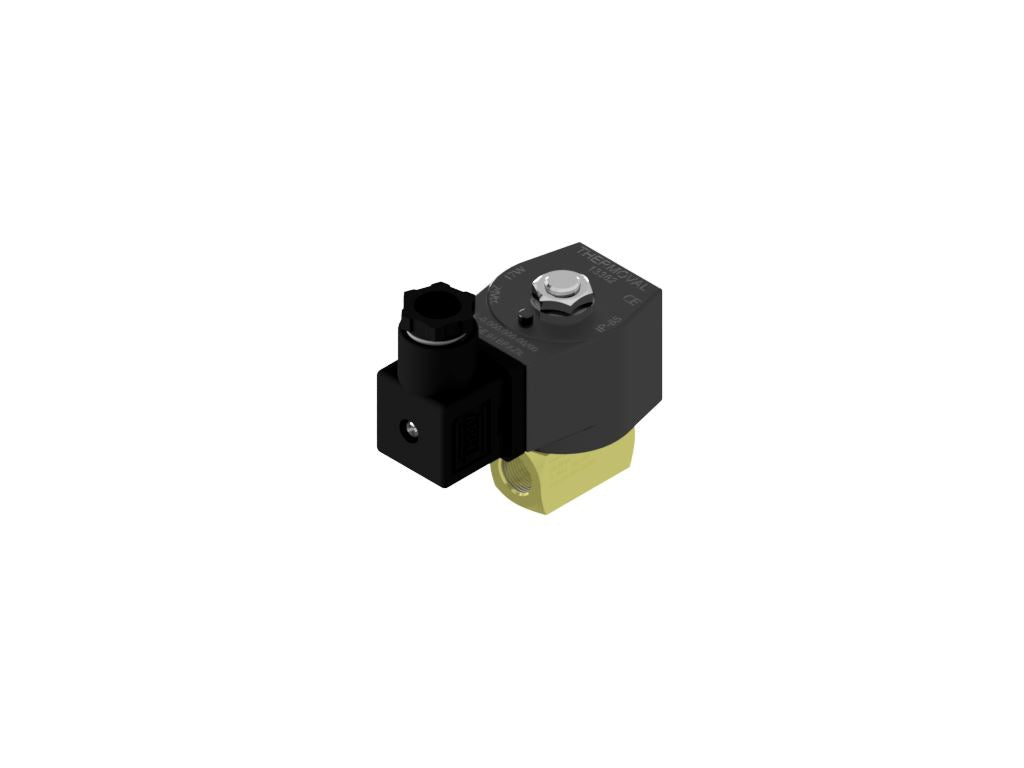

Solenoid Valve 2-Way Normally Closed 1/4" NPT

OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 1/4" NPT (ANSI B2.1) - Inlet.
Connection Female 1/4" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 2,5 mm - ( Kv 0,18 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Width 40.0 x Height 36.5 x Length 51.0 x Diam. the Nucleo: 11.5
Protection Class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
24 VDC
17 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Mineral oils, hydraulic fluids, LGP, NG air and water.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 350
SPECIAL FEATURES
WEIGHT (KG) 0,28400
WARRANTY 1 Year
