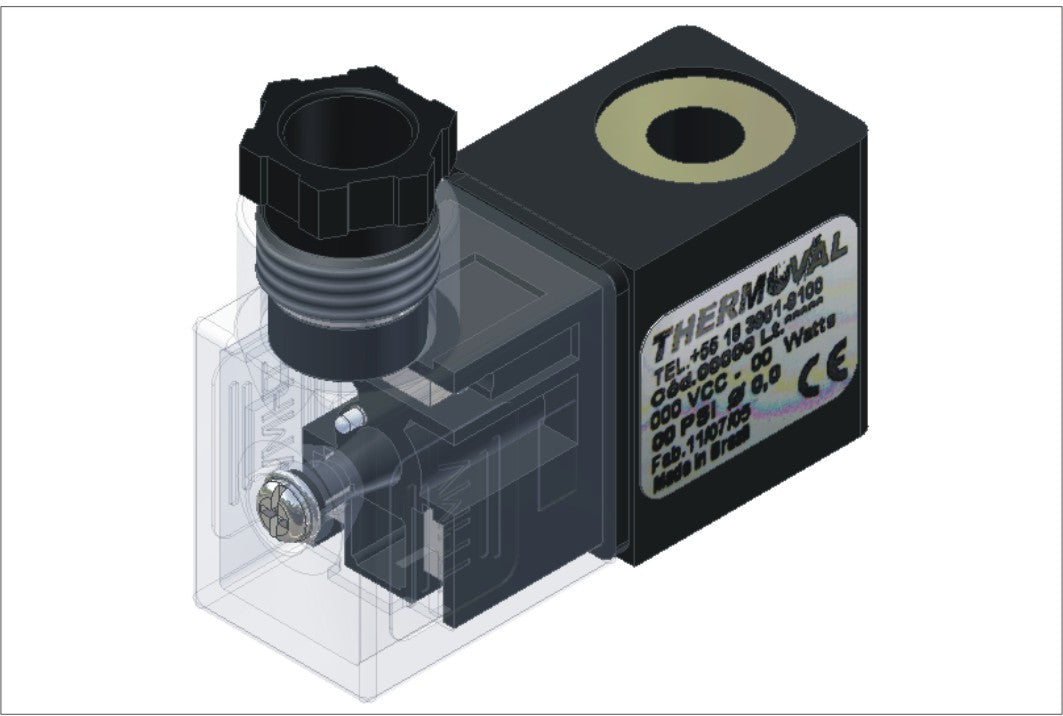

Solenoid Coil 24VDC 4W
Solenoid Coil 24VDC 4W
Regular price
$44.00 CAD
Regular price
$44.00 CAD
Sale price
$44.00 CAD
Unit price
/
per
Couldn't load pickup availability
ENAMELED WIRE AWG 36 (Class H)
REEL Polyamide 6 (30% glass fiber black color)
ARMOR SAE 1010/1020 - Painting with trivalent zinc white sealant camda 8 ~ 15 μm
TAPE PROTECTION Polyester
VOLTAGE 24 VDC
POWER 4 W
TYPE
Width 22.2 x Height 31.0 x Length 29,5 x Diam. the Nucleo: 9,2
Protection class: IP65
Encapsulation: Polyamide 6 (30% fiber) or PPS
CONNECTOR Electric connection DIN 43650B optional led
SPECIAL FEATURES
SPECIAL COIL L.2007, CORE 9.0
mm.
WEIGHT (Kg) 0,08500
WARRANTY
1 YearApplication: Valve Actuation.
Installation and grounding: Coil without polarity with optional grounding as application requirements
REEL Polyamide 6 (30% glass fiber black color)
ARMOR SAE 1010/1020 - Painting with trivalent zinc white sealant camda 8 ~ 15 μm
TAPE PROTECTION Polyester
VOLTAGE 24 VDC
POWER 4 W
TYPE
Width 22.2 x Height 31.0 x Length 29,5 x Diam. the Nucleo: 9,2
Protection class: IP65
Encapsulation: Polyamide 6 (30% fiber) or PPS
CONNECTOR Electric connection DIN 43650B optional led
SPECIAL FEATURES
SPECIAL COIL L.2007, CORE 9.0
mm.
WEIGHT (Kg) 0,08500
WARRANTY
1 YearApplication: Valve Actuation.
Installation and grounding: Coil without polarity with optional grounding as application requirements
