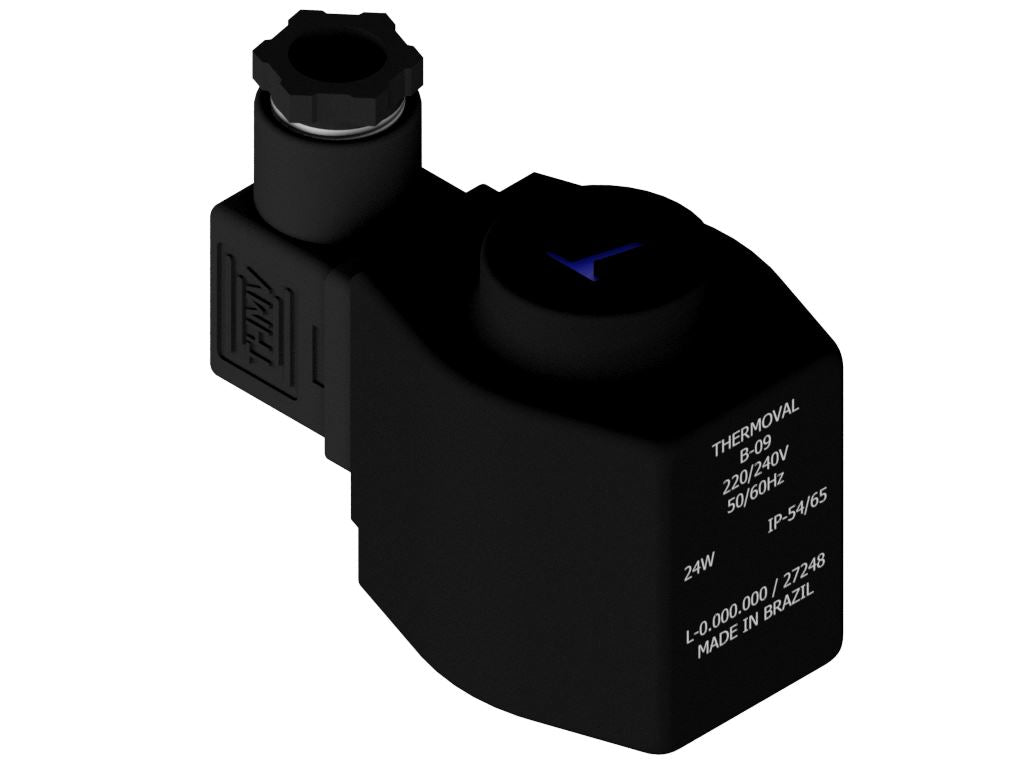

Solenoid Coil 220/240V, 24W, Enameled Wire AWG 35
Solenoid Coil 220/240V, 24W, Enameled Wire AWG 35
Regular price
$66.00 CAD
Regular price
$66.00 CAD
Sale price
$66.00 CAD
Unit price
/
per
Couldn't load pickup availability
ENAMELED WIRE AWG 35 (Class H)
REEL (PPS) Polyphenylene sulfide with 40% of fiberglass polymer
ARMOR SAE 1010/1020 - Painting with trivalent zinc white sealant camda 8 ~ 15 μm
TAPE PROTECTION Polyester
VOLTAGE 220/240 V 50/60 Hz
POWER 24 W
TYPE
Width48.1 x Height57.5 x Length57 x Diam. of the 15.3mm Core.
Degree of Protection: IP65
Encapsulation: Encapsulation: Polyamide 6 (30% Fiberglass)
CONNECTOR DIN 43650A Electric connection
SPECIAL FEATURES
WEIGHT (Kg) 0,28100
WARRANTY: 1 Year Application: Valve Actuation.
Installation and grounding: Coil without polarity with optional grounding as application requirements
REEL (PPS) Polyphenylene sulfide with 40% of fiberglass polymer
ARMOR SAE 1010/1020 - Painting with trivalent zinc white sealant camda 8 ~ 15 μm
TAPE PROTECTION Polyester
VOLTAGE 220/240 V 50/60 Hz
POWER 24 W
TYPE
Width48.1 x Height57.5 x Length57 x Diam. of the 15.3mm Core.
Degree of Protection: IP65
Encapsulation: Encapsulation: Polyamide 6 (30% Fiberglass)
CONNECTOR DIN 43650A Electric connection
SPECIAL FEATURES
WEIGHT (Kg) 0,28100
WARRANTY: 1 Year Application: Valve Actuation.
Installation and grounding: Coil without polarity with optional grounding as application requirements
