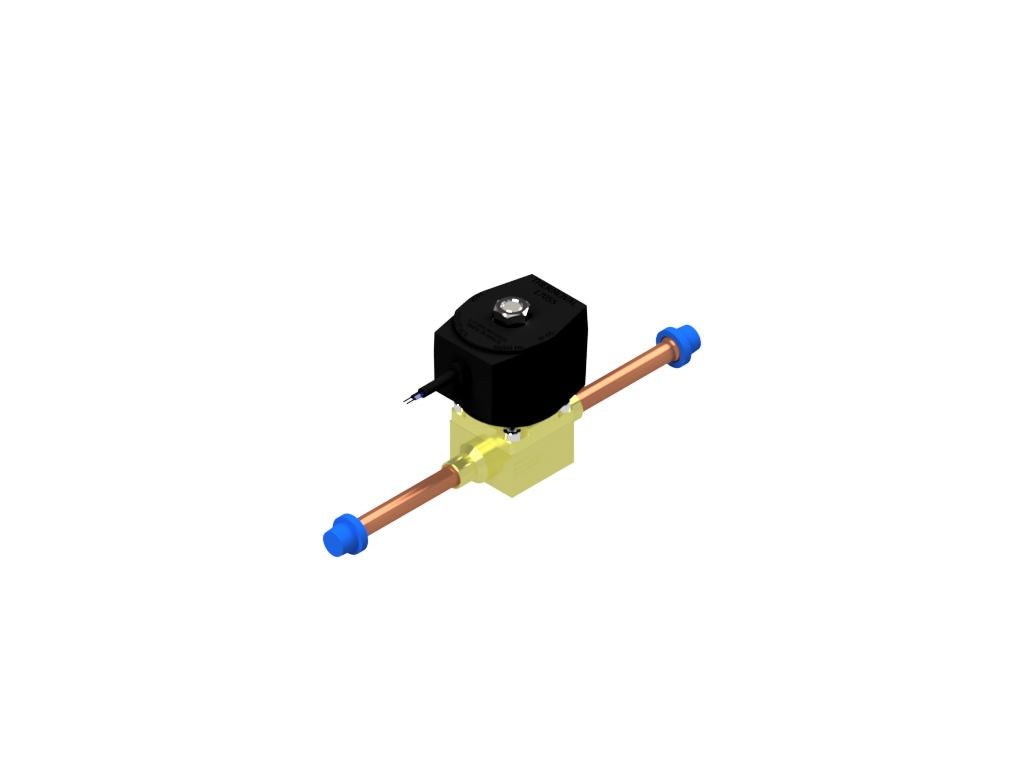

Refrigeration Solenoid Valve, 2way, Normally Closed, 3/8"ODF, Brass, 127V
Refrigeration Solenoid Valve, 2way, Normally Closed, 3/8"ODF, Brass, 127V
Regular price
$150.00 CAD
Regular price
$150.00 CAD
Sale price
$150.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION 2 Way Normally Closed Pilot Operated
CONNECTION
Refrigeration Tube 3/8" (ODF) - Inlet.
Refrigeration Tube 3/8" (ODF) - Outlet.
ORIFICE Ø 8,0 mm - ( Kv 1,1 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seals - Teflon (PTFE) e HNBR (Hydrogenated Nitrile Rubber)
ELETRICAL
PROPERTIES
Width 47.5 x Height 42.0 x Length 59.5 x Diam. the Nucleo 17x34mm e 10,5x3mm.
Protection class:IP65.
Encapsulation: Polyamide 6 (30% glass fiber black color)
110/127 V 50/60 Hz
20 W
Handle 2x1 tinned w/ 850mm + - 20mm
MAIN APPLICATIONS
Freons (except ammonia), oil of oil with high aniline point, lubricant Ester-silicate, acid brandos and air.
* Other applications consult compatibility
PRESSURE (PSI) Mín. 5 / Máx. 350
SPECIAL FEATURES
WEIGHT (KG) 0,75600
WARRANTY 1 Year
CONNECTION
Refrigeration Tube 3/8" (ODF) - Inlet.
Refrigeration Tube 3/8" (ODF) - Outlet.
ORIFICE Ø 8,0 mm - ( Kv 1,1 ) Flow Factor.
MATERIAL
Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seals - Teflon (PTFE) e HNBR (Hydrogenated Nitrile Rubber)
ELETRICAL
PROPERTIES
Width 47.5 x Height 42.0 x Length 59.5 x Diam. the Nucleo 17x34mm e 10,5x3mm.
Protection class:IP65.
Encapsulation: Polyamide 6 (30% glass fiber black color)
110/127 V 50/60 Hz
20 W
Handle 2x1 tinned w/ 850mm + - 20mm
MAIN APPLICATIONS
Freons (except ammonia), oil of oil with high aniline point, lubricant Ester-silicate, acid brandos and air.
* Other applications consult compatibility
PRESSURE (PSI) Mín. 5 / Máx. 350
SPECIAL FEATURES
WEIGHT (KG) 0,75600
WARRANTY 1 Year
