Pneumatic Valve 5/2 way, Simple Solenoid, 1/8" NPT, 24 VDC
Pneumatic Valve 5/2 way, Simple Solenoid, 1/8" NPT, 24 VDC
Regular price
$78.00 CAD
Regular price
$78.00 CAD
Sale price
$78.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION 5/2-Way Simple Solenoid
CONNECTION
Connection Female 1/8" NPT (ANSI B2.1) - Inlet.
Connection Female 1/8" NPT (ANSI B2.1) - Outlet.
Connection Female 1/8" NPT (ANSI B2.1) - Escape.
ORIFICE Ø 6,0 mm - ( Kv 0,56 ) Flow Factor.
MATERIAL
Body - Aluminum (ASTM B211) - Surface in Anodized.
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Width 22.2 x Height 31.0 x Length 29,5 x Diam. the Nucleo: 9,2
Protection class: IP65
Encapsulation: Polyamide 6 (30% fiber) or PPS
24 VDC
4 W
Electric connection DIN 43650B optional led
MAIN APPLICATIONS
Air/Oxygen
* Other applications consult compatibility
PRESSURE (PSI) Min. 21 / Max. 114
SPECIAL FEATURES
WEIGHT (KG) 0,21000
WARRANTY 1 Year
CONNECTION
Connection Female 1/8" NPT (ANSI B2.1) - Inlet.
Connection Female 1/8" NPT (ANSI B2.1) - Outlet.
Connection Female 1/8" NPT (ANSI B2.1) - Escape.
ORIFICE Ø 6,0 mm - ( Kv 0,56 ) Flow Factor.
MATERIAL
Body - Aluminum (ASTM B211) - Surface in Anodized.
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Width 22.2 x Height 31.0 x Length 29,5 x Diam. the Nucleo: 9,2
Protection class: IP65
Encapsulation: Polyamide 6 (30% fiber) or PPS
24 VDC
4 W
Electric connection DIN 43650B optional led
MAIN APPLICATIONS
Air/Oxygen
* Other applications consult compatibility
PRESSURE (PSI) Min. 21 / Max. 114
SPECIAL FEATURES
WEIGHT (KG) 0,21000
WARRANTY 1 Year
Share

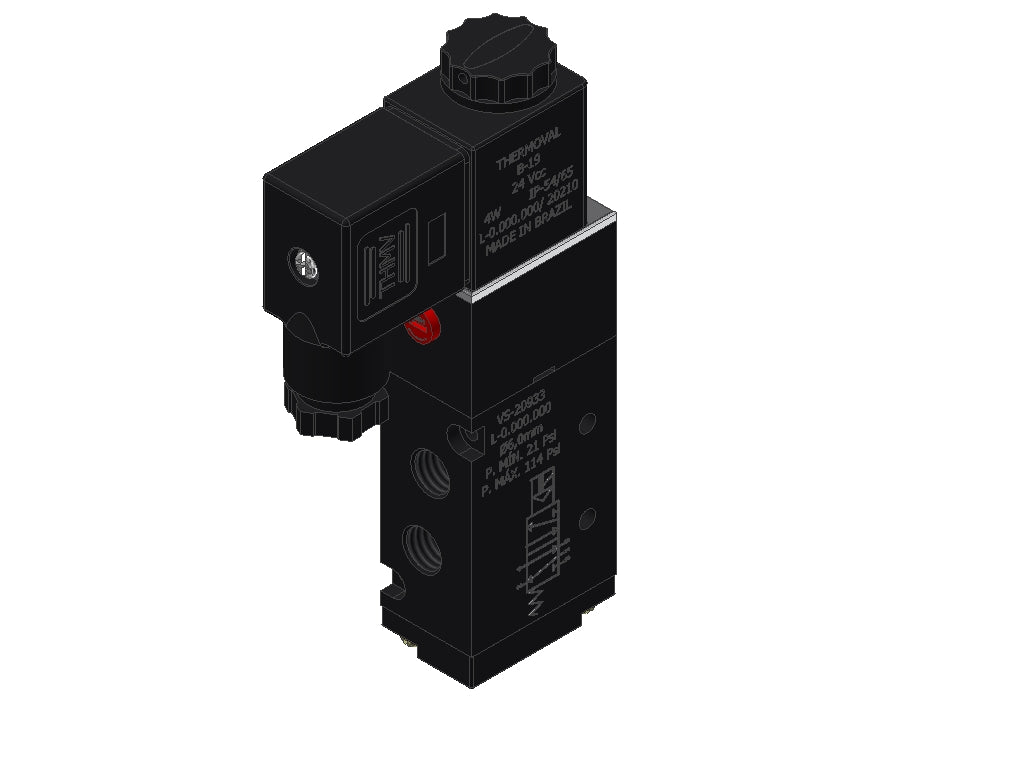

![Pneumatic Valve 5/2 way, Simple Solenoid, 1/8" NPT, 24 VDC](http://thermovalstore.com/cdn/shop/products/20933.jpg?v=1660854604&width=1445)
-
