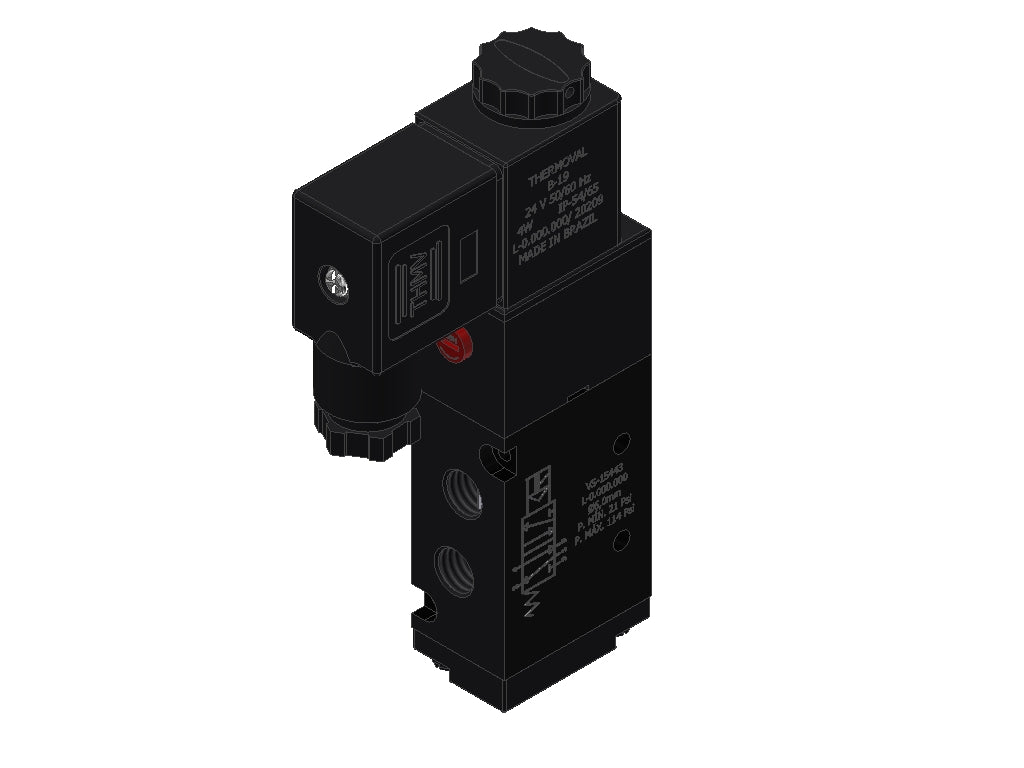

Pneumatic Valve 5/2 way, Simple Solenoid, 1/8" BSP, 24VAC
Pneumatic Valve 5/2 way, Simple Solenoid, 1/8" BSP, 24VAC
Regular price
$80.00 CAD
Regular price
$80.00 CAD
Sale price
$80.00 CAD
Unit price
/
per
Couldn't load pickup availability
5/2-Way Simple Solenoid
CONNECTION
Connection Thread 1/8" BSP (ISO 228/1) - Inlet.
Connection Thread 1/8" BSP (ISO 228/1) - Outlet.
Connection Thread 1/8" BSP (ISO 228/1) - Escape.
ORIFICE Ø 6,0 mm - ( Kv 0,56 ) Flow Factor.
MATERIAL
Body - Aluminum (ASTM B211) - Surface in Anodized.
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Width 22.2 x Height 31.0 x Length 29,5 x Diam. the Nucleo: 9,2
Protection class: IP65
Encapsulation: Polyamide 6 (30% fiber) or PPS
24 V 50/60 Hz
HOLDING - 9,1VA
INRUSH - 15,6 VA
Electric connection DIN 43650B optional led
MAIN APPLICATIONS
Air/Oxygen
* Other applications consult compatibility
PRESSURE (PSI) Min. 21 / Max. 114
SPECIAL FEATURES COIL CORE WITH SPECIAL SERIES 19 9MM
POWER OUTPUT VOLTAGE 24 VDC 6.0 W and 4.0 W STABILIZED POWER
WEIGHT (KG) 0,21000
WARRANTY 1 Year
CONNECTION
Connection Thread 1/8" BSP (ISO 228/1) - Inlet.
Connection Thread 1/8" BSP (ISO 228/1) - Outlet.
Connection Thread 1/8" BSP (ISO 228/1) - Escape.
ORIFICE Ø 6,0 mm - ( Kv 0,56 ) Flow Factor.
MATERIAL
Body - Aluminum (ASTM B211) - Surface in Anodized.
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Width 22.2 x Height 31.0 x Length 29,5 x Diam. the Nucleo: 9,2
Protection class: IP65
Encapsulation: Polyamide 6 (30% fiber) or PPS
24 V 50/60 Hz
HOLDING - 9,1VA
INRUSH - 15,6 VA
Electric connection DIN 43650B optional led
MAIN APPLICATIONS
Air/Oxygen
* Other applications consult compatibility
PRESSURE (PSI) Min. 21 / Max. 114
SPECIAL FEATURES COIL CORE WITH SPECIAL SERIES 19 9MM
POWER OUTPUT VOLTAGE 24 VDC 6.0 W and 4.0 W STABILIZED POWER
WEIGHT (KG) 0,21000
WARRANTY 1 Year
