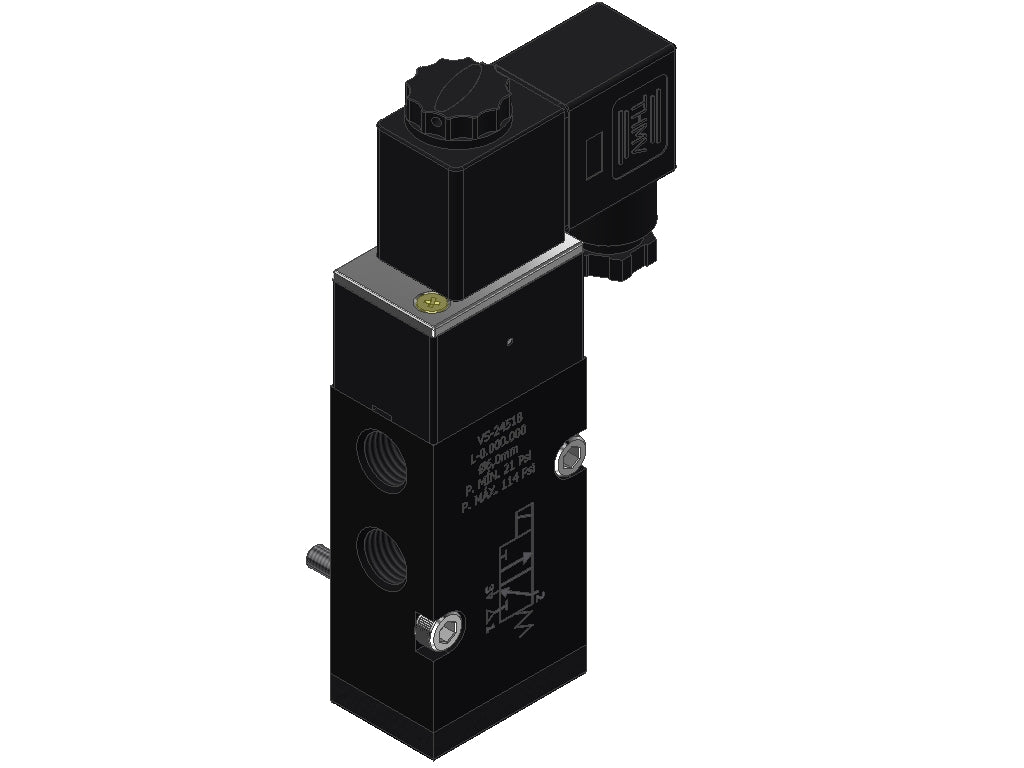

Pneumatic Valve, 3/2-Way Simple Solenoid N.C., 1/4" NPT

OPERATION 3/2-Way Simple Solenoid N.C.
CONNECTION
Connection Female 1/4" NPT (ANSI B2.1) - Inlet.
Outlet - ( NAMUR ).
ORIFICE Ø 6,0 mm - ( Kv 0,56 ) Flow Factor.
MATERIAL
Body - Aluminum (ASTM B211) - Surface in Anodized.
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Width 22.2 x Height 31.0 x Length 29,5 x Diam. the Nucleo: 9,2
Protection class: IP65
Encapsulation: Polyamide 6 (30% fiber) or PPS
110/127 V 50/60 Hz
HOLDING - 11,0VA
INRUSH - 18,7VA
Electric connection DIN 43650B optional led
MAIN APPLICATIONS
Air/Oxygen
* Other applications consult compatibility
PRESSURE (PSI) Min. 21 / Max. 114
SPECIAL FEATURES
WEIGHT (KG) 0,31600
WARRANTY 1 Year
