Thermoval

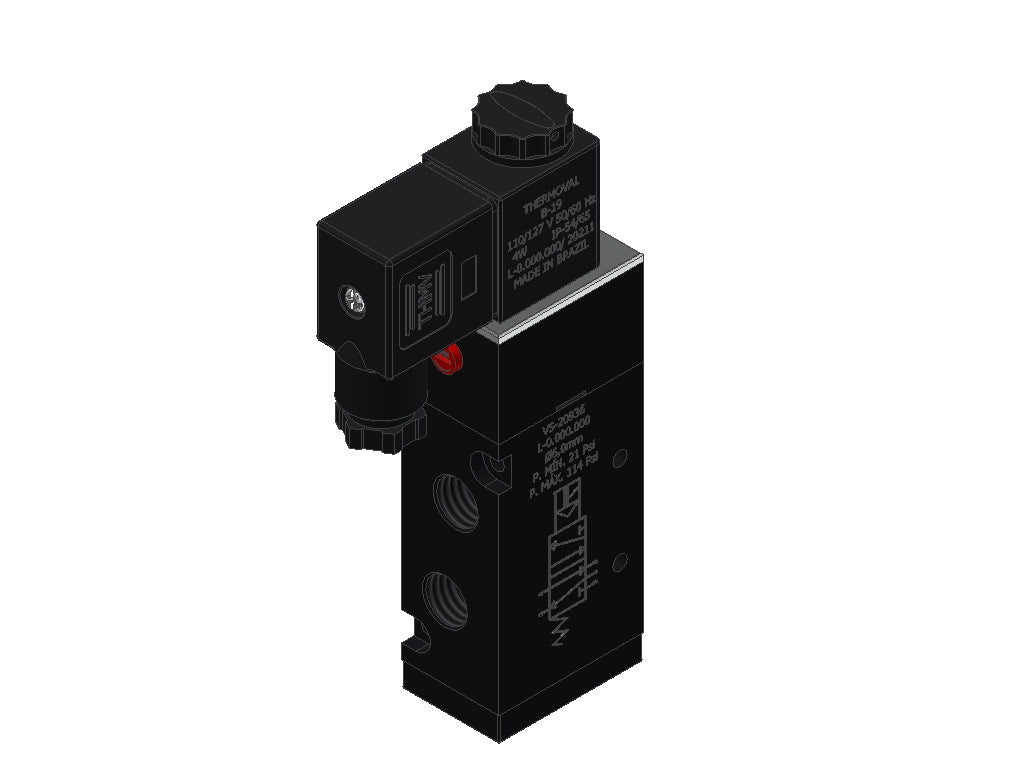

Pneumatic Solenoid Valve, 5/2way, 1/4" NPT, Aluminum, 127V
Pneumatic Solenoid Valve, 5/2way, 1/4" NPT, Aluminum, 127V
Regular price
$44.00 CAD
Regular price
$44.00 CAD
Sale price
$44.00 CAD
Unit price
/
per
Couldn't load pickup availability
| OPERATION | 5/2-Way Simple Solenoid |
| CONNECTION | Connection Female 1/4" NPT (ANSI B2.1) - Inlet. Connection Female 1/4" NPT (ANSI B2.1) - Outlet. Connection Female 1/4" NPT (ANSI B2.1) - Escape. |
| ORIFICE | Ø 6,0 mm - ( Kv 0,56 ) Flow Factor. |
| MATERIAL | Body - Aluminum (ASTM B211) - Surface in Anodized. Plunger/Pole - Stainless Steel (AISI 430 Fr). Spring - Stainless Steel (AISI 302). Wire - Enameled Copper Class HR 200°C (IEC 60317-8). |
| SEAL | Seal - Polymer N 30000-7 B (Nitrile) |
| ELETRICAL PROPERTIES |
Width 22.2 x Height 31.0 x Length 29,5 x Diam. the Nucleo: 9,2 Protection class: IP65 Encapsulation: Polyamide 6 (30% fiber) or PPS 110/127 V 50/60 Hz HOLDING - 11,0VA INRUSH - 18,7VA Electric connection DIN 43650B optional led |
| MAIN APPLICATIONS | Air/Oxygen * Other applications consult compatibility |
| PRESSURE (PSI) | Min. 21 / Max. 114 |
| SPECIAL FEATURES | |
| WEIGHT (KG) | 0,30000 |
| WARRANTY | 1 Year |
