Thermoval

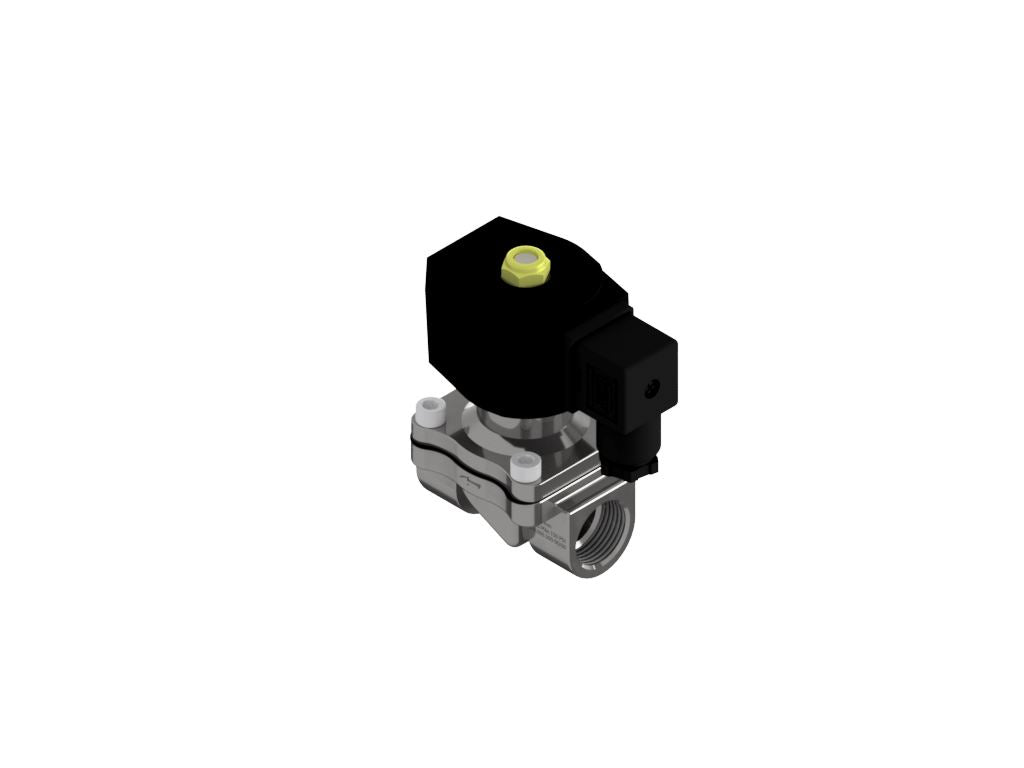

General Purpose Solenoid Valve, 2way, Normally Closed, 3/4" NPT, Stainless Steel, 127V
General Purpose Solenoid Valve, 2way, Normally Closed, 3/4" NPT, Stainless Steel, 127V
Regular price
$157.00 CAD
Regular price
$157.00 CAD
Sale price
$157.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 3/4" NPT (ANSI B2.1) - Inlet.
Connection Female 3/4" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 20,0 mm - ( Kv 8,0 ) Flow Factor.
MATERIAL
Body/Solenoid Tube - Stainless Steel (AISI 316).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 47.5 x Height 42.0 x Length 59.5 x Diam. the Nucleo 17x34mm e 10,5x3mm.
Protection class:IP65.
Encapsulation: Polyamide 6 (30% glass fiber black color)
110/127 V 50/60 Hz
25 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Fluid of silica, air, lubricant to the base of Di-Ester, liquid petroleum gas(LGP), H2O, Ethanol, natural gas and cold
oxygen gas.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 0,85100
WARRANTY 1 Year
CONNECTION
Connection Female 3/4" NPT (ANSI B2.1) - Inlet.
Connection Female 3/4" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 20,0 mm - ( Kv 8,0 ) Flow Factor.
MATERIAL
Body/Solenoid Tube - Stainless Steel (AISI 316).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 47.5 x Height 42.0 x Length 59.5 x Diam. the Nucleo 17x34mm e 10,5x3mm.
Protection class:IP65.
Encapsulation: Polyamide 6 (30% glass fiber black color)
110/127 V 50/60 Hz
25 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Fluid of silica, air, lubricant to the base of Di-Ester, liquid petroleum gas(LGP), H2O, Ethanol, natural gas and cold
oxygen gas.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 0,85100
WARRANTY 1 Year
