Thermoval

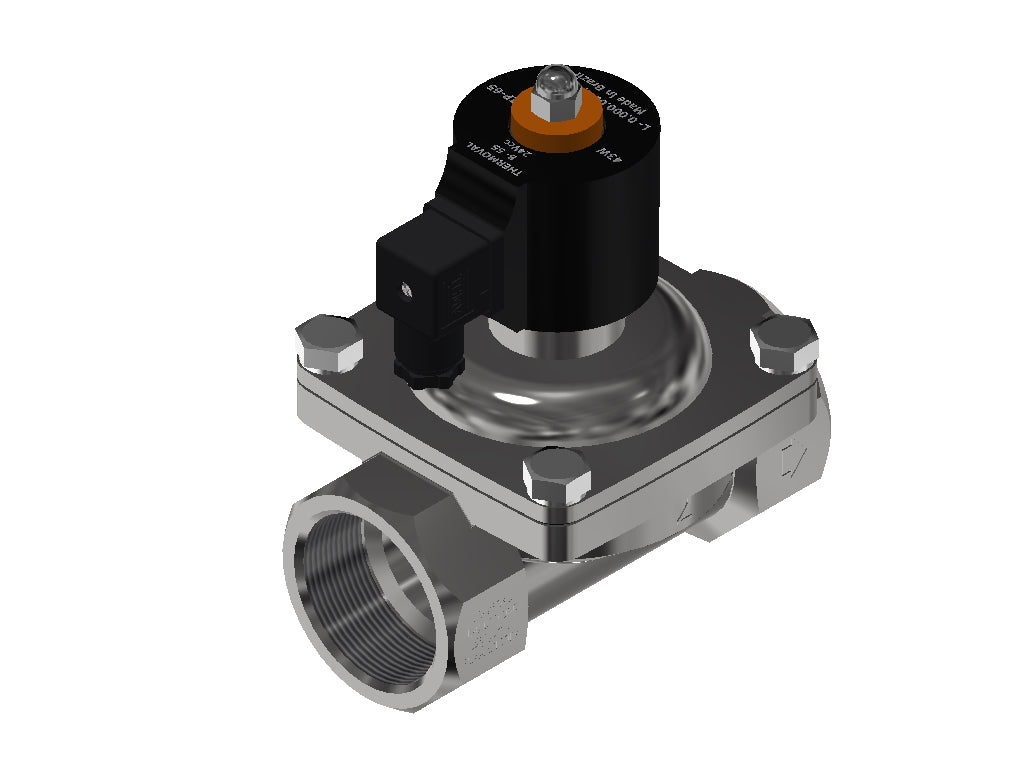

General Purpose Solenoid Valve, 2way, Normally Closed, 2" NPT, Stainless Steel, 24VDC
General Purpose Solenoid Valve, 2way, Normally Closed, 2" NPT, Stainless Steel, 24VDC
Regular price
$1,179.00 CAD
Regular price
$1,179.00 CAD
Sale price
$1,179.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION
Connection Female 2" NPT (ANSI B2.1) - Inlet.
Connection Female 2" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 50,0 mm - (Kv 43,86) Flow Factor.
MATERIAL
Body - Stainless Steel (AISI 316).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 47.0 x Height 57.0 x Length 57.0 x Diam. the Nucleo: 20.0
Protection class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
24 VDC
43 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Fluid of silica, air, lubricant to the base of Di-Ester, liquid petroleum gas(LGP), H2O, Ethanol, natural gas and cold
oxygen gas.
* Other applications consult compatibility
PRESSURE (PSI) Min. 10 / Max. 100
SPECIAL FEATURES
WEIGHT (KG) 3,27000
WARRANTY 1 Year
CONNECTION
Connection Female 2" NPT (ANSI B2.1) - Inlet.
Connection Female 2" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 50,0 mm - (Kv 43,86) Flow Factor.
MATERIAL
Body - Stainless Steel (AISI 316).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Width 47.0 x Height 57.0 x Length 57.0 x Diam. the Nucleo: 20.0
Protection class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
24 VDC
43 W
DIN 43650A Electric connection
MAIN APPLICATIONS
Fluid of silica, air, lubricant to the base of Di-Ester, liquid petroleum gas(LGP), H2O, Ethanol, natural gas and cold
oxygen gas.
* Other applications consult compatibility
PRESSURE (PSI) Min. 10 / Max. 100
SPECIAL FEATURES
WEIGHT (KG) 3,27000
WARRANTY 1 Year
