Thermoval

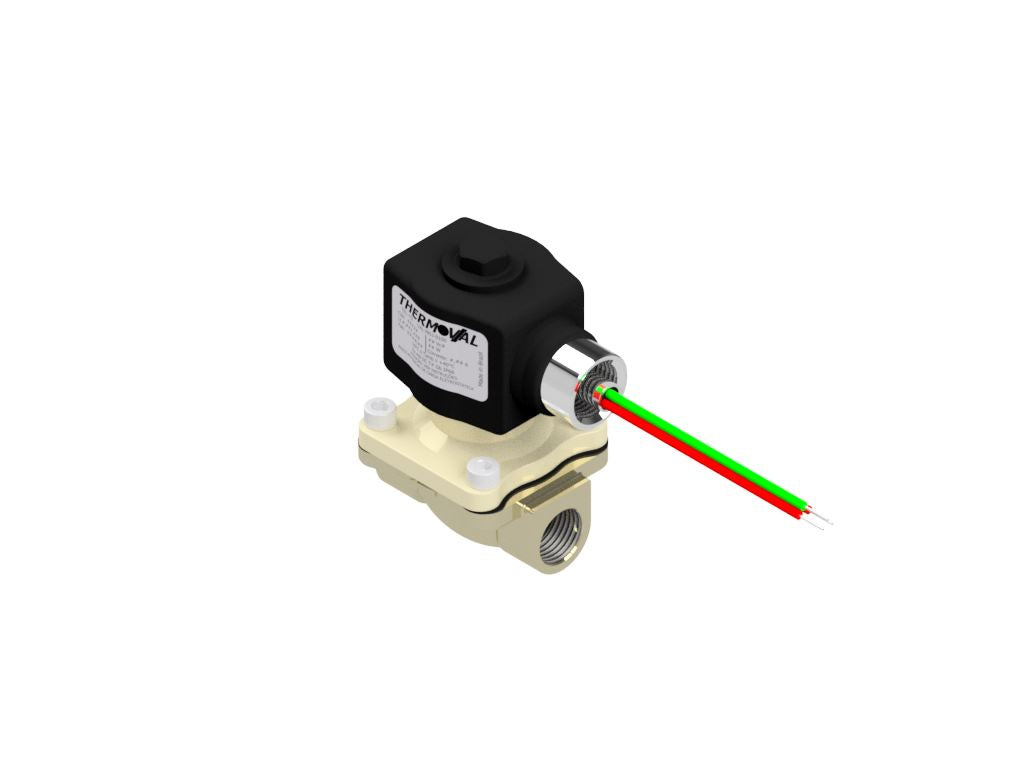

General Use Solenoid Valve, 2way, Normally Closed, 1/2" NPT, Brass, 127V

General Use Solenoid Valve, 2way, Normally Closed, 1/2" NPT, Brass, 127V

Regular price $142.00 CAD
Regular price $142.00 CAD Sale price $142.00 CAD
Sale Sold out
OPERATION 2-Way Normally Closed ---> Open when energized.
CONNECTION Connection Female 1/2" NPT (ANSI B2.1) - Inlet.
Connection Female 1/2" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 16,0 mm - (Kv 4,65) Flow Factor.
MATERIAL Body - Brass (ASTM B16).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Dimensions (mm):
core diameter: 16,8; width: 45,5; length: 76,5; height: 41.
Protection Class: IP 66.
POLYAMIDE with 30% of fiberglass polymer encapsulation
110/127 V 50/60 Hz
25 W
Tinned Copper Cable with 500 + -10 (mm).
MAIN APPLICATIONS Fluid of silica, air, lubricant to the base of Di-Ester, liquid petroleum gas(LGP), H2O, Ethanol, natural gas and cold
oxygen gas.
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 0,82200
WARRANTY 1 Year
