Thermoval

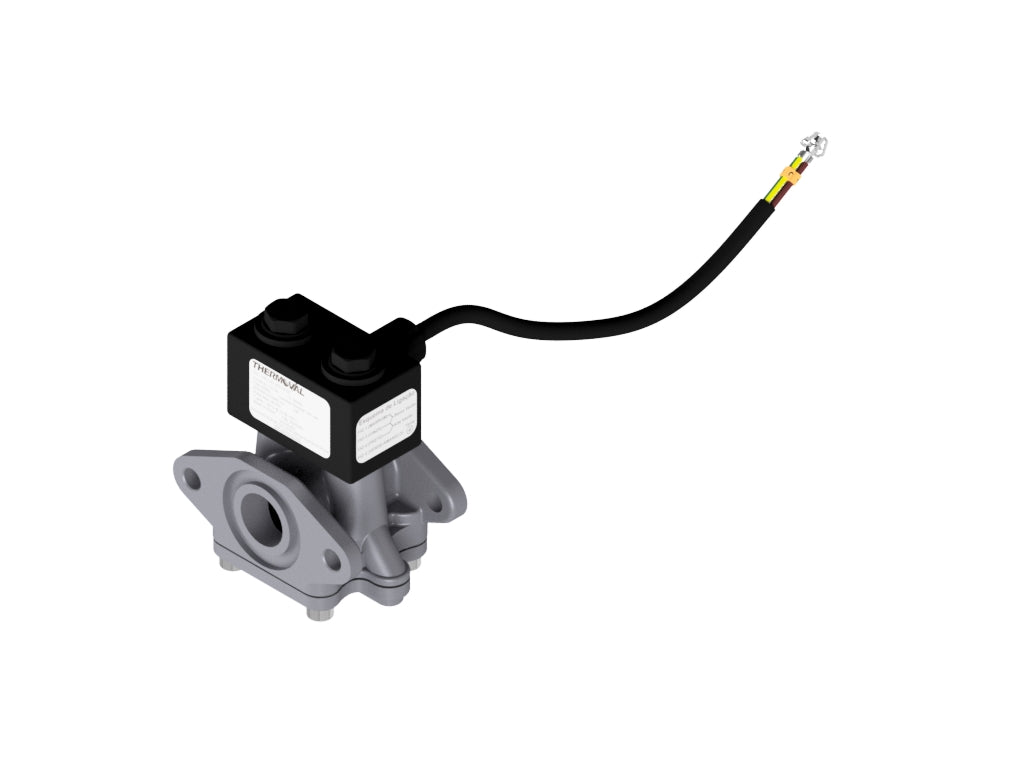

Fuel Injection Pump Solenoid Valve
Fuel Injection Pump Solenoid Valve
Regular price
$229.00 CAD
Regular price
$229.00 CAD
Sale price
$229.00 CAD
Unit price
/
per
Couldn't load pickup availability
CONNECTION Flange connection for 3/4
ORIFICE Ø 3,0 and 19,0 mm - ( Kv 0,23 e 6,56 ) Flow Factor.
MATERIAL
Body - Aluminum (ASTM B211).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Dimensions (mm):
core diameter: 10,2; width: 36,0; length: 62,5; height: 33,5.
Vectra E130i LCP Glass Reinforced Polymer encapsulation.IP66
220/240 V 50/60 Hz
5 W
Electrical specifications according to special characteristics.
MAIN APPLICATIONS
Fuels ( Ethanol , Gasoline, Diesel)
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 40
SPECIAL FEATURES
Certification: Ex mb IIC T4 Gb
Connector:Cable Quad with 2.000mm Length,Terminal Model 2478 - (3.96 mm Pitch KK)
Note: Explosion Proof Certification is just valid in Brazil.
WEIGHT (KG) 0,67600
WARRANTY 1 Year
ORIFICE Ø 3,0 and 19,0 mm - ( Kv 0,23 e 6,56 ) Flow Factor.
MATERIAL
Body - Aluminum (ASTM B211).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Fluorcarbon Elastomer (Viton)
ELETRICAL
PROPERTIES
Dimensions (mm):
core diameter: 10,2; width: 36,0; length: 62,5; height: 33,5.
Vectra E130i LCP Glass Reinforced Polymer encapsulation.IP66
220/240 V 50/60 Hz
5 W
Electrical specifications according to special characteristics.
MAIN APPLICATIONS
Fuels ( Ethanol , Gasoline, Diesel)
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 40
SPECIAL FEATURES
Certification: Ex mb IIC T4 Gb
Connector:Cable Quad with 2.000mm Length,Terminal Model 2478 - (3.96 mm Pitch KK)
Note: Explosion Proof Certification is just valid in Brazil.
WEIGHT (KG) 0,67600
WARRANTY 1 Year
