thermovalstore

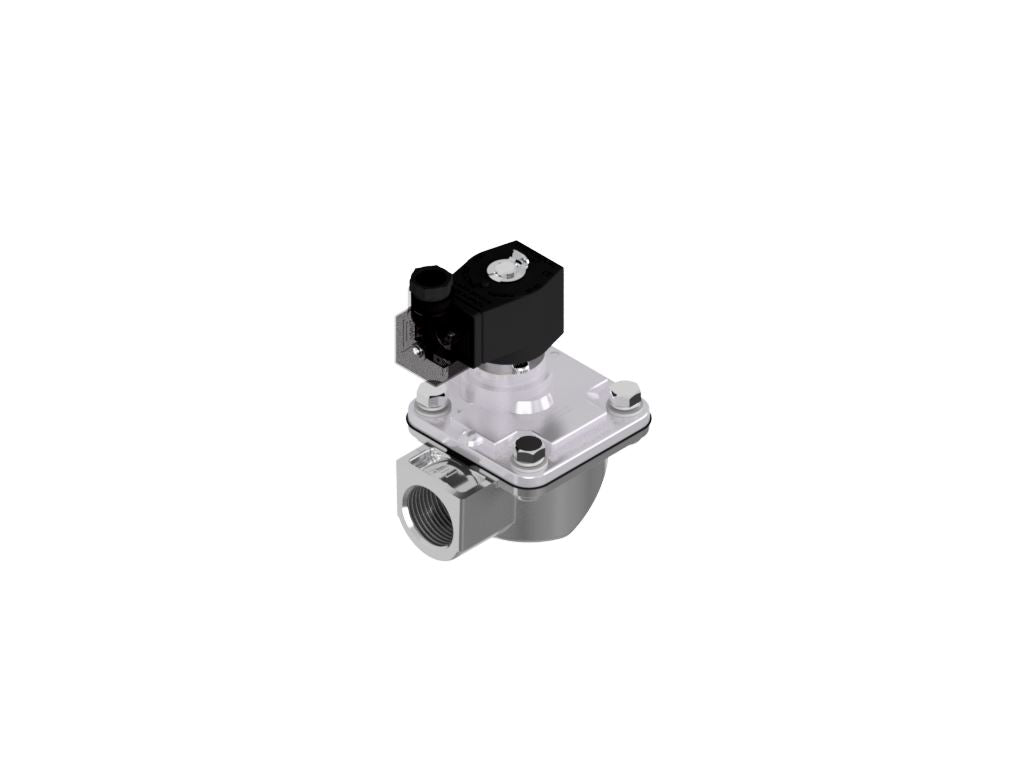

Dust Collector Solenoid Valve, 2way, Normally Closed, 1" NPT, Aluminum, 127V
Dust Collector Solenoid Valve, 2way, Normally Closed, 1" NPT, Aluminum, 127V
Regular price
$125.00 CAD
Regular price
$125.00 CAD
Sale price
$125.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION 2 Way Normally Closed Pilot Operated
CONNECTION
Connection Female 1" NPT (ANSI B2.1) - Inlet.
Connection Female 1" NPT (ANSI B2.1) - Outlet Deg.90°.
ORIFICE Ø 32,0 mm - (Kv 14,5) Flow Factor.
MATERIAL
Body - Aluminum (ASTM B211).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Width 40.0 x Height 36.5 x Length 51.0 x Diam. the Nucleo: 11.5
Protection Class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
110/127 V 50/60 Hz
20 W
DIN 43650A Electric connection with led
MAIN APPLICATIONS
Air/Oxygen
* Other applications consult compatibility
PRESSURE (PSI) Min. 43 / Max. 125
SPECIAL FEATURES
WEIGHT (KG) 0,73600
WARRANTY 1 Year
CONNECTION
Connection Female 1" NPT (ANSI B2.1) - Inlet.
Connection Female 1" NPT (ANSI B2.1) - Outlet Deg.90°.
ORIFICE Ø 32,0 mm - (Kv 14,5) Flow Factor.
MATERIAL
Body - Aluminum (ASTM B211).
Plunger/Pole - Stainless Steel (AISI 430 Fr).
Spring - Stainless Steel (AISI 302).
Wire - Enameled Copper Class HR 200°C (IEC 60317-8).
SEAL Seal - Polymer N 30000-7 B (Nitrile)
ELETRICAL
PROPERTIES
Width 40.0 x Height 36.5 x Length 51.0 x Diam. the Nucleo: 11.5
Protection Class: IP65
Encapsulation: Polyamide 6 (30% glass fiber black color)
110/127 V 50/60 Hz
20 W
DIN 43650A Electric connection with led
MAIN APPLICATIONS
Air/Oxygen
* Other applications consult compatibility
PRESSURE (PSI) Min. 43 / Max. 125
SPECIAL FEATURES
WEIGHT (KG) 0,73600
WARRANTY 1 Year
