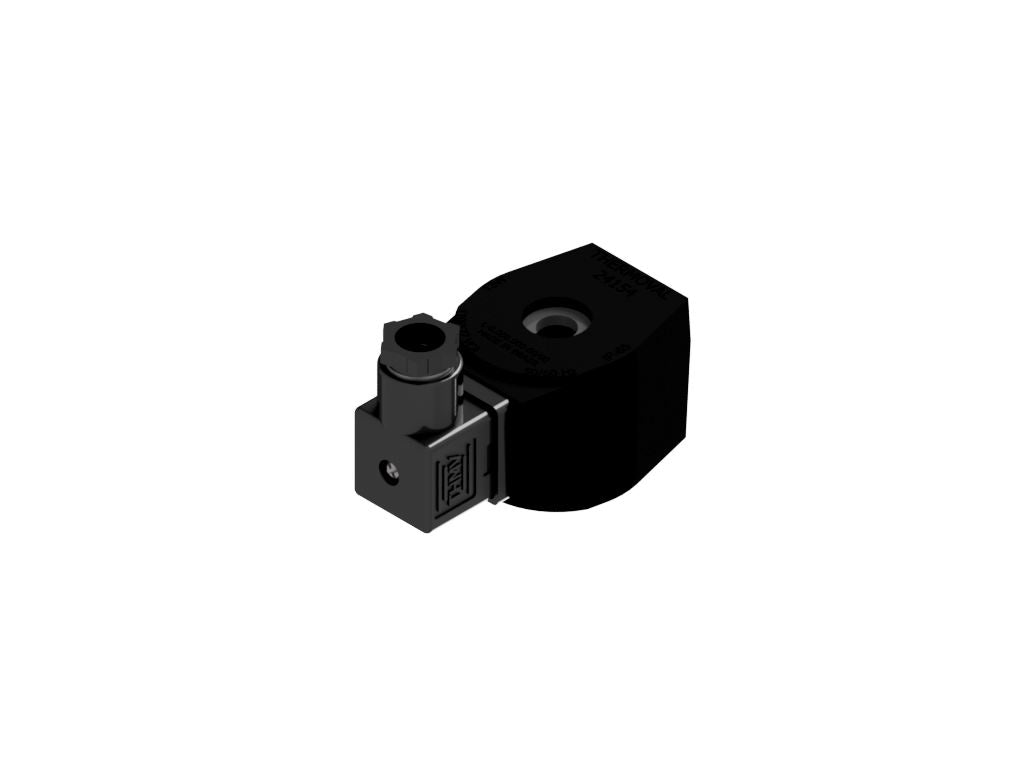

Solenoid Coil 110/127V, 13W, Enameled Wire AWG 31
Solenoid Coil 110/127V, 13W, Enameled Wire AWG 31
Regular price
$46.00 CAD
Regular price
$46.00 CAD
Sale price
$46.00 CAD
Unit price
/
per
Couldn't load pickup availability
ENAMELED WIRE AWG 31 (Class H)
REEL Polyamide 6 (30% glass fiber black color)
ARMOR SAE 1010/1020 - Painting with trivalent zinc white sealant camda 8 ~ 15 μm
TAPE PROTECTION Polyester
VOLTAGE 110/127 V 50/60 Hz
POWER 13 W
TYPE
Width 47.5 x Height 42.0 x Length 59.5 x Diam. the Nucleo 17x34mm e 10,5x3mm.
Protection class:IP65.
Encapsulation: Polyamide 6 (30% glass fiber black color)
CONNECTOR DIN 43650A Electric connection
SPECIAL FEATURES
Coil for gas line.
GLP and GNV
Power: 13 W.
WEIGHT (Kg) 0,29700
WARRANTY: 1 YearApplication: Valve Actuation.
Installation and grounding: Coil without polarity with optional grounding as application requirements
REEL Polyamide 6 (30% glass fiber black color)
ARMOR SAE 1010/1020 - Painting with trivalent zinc white sealant camda 8 ~ 15 μm
TAPE PROTECTION Polyester
VOLTAGE 110/127 V 50/60 Hz
POWER 13 W
TYPE
Width 47.5 x Height 42.0 x Length 59.5 x Diam. the Nucleo 17x34mm e 10,5x3mm.
Protection class:IP65.
Encapsulation: Polyamide 6 (30% glass fiber black color)
CONNECTOR DIN 43650A Electric connection
SPECIAL FEATURES
Coil for gas line.
GLP and GNV
Power: 13 W.
WEIGHT (Kg) 0,29700
WARRANTY: 1 YearApplication: Valve Actuation.
Installation and grounding: Coil without polarity with optional grounding as application requirements
