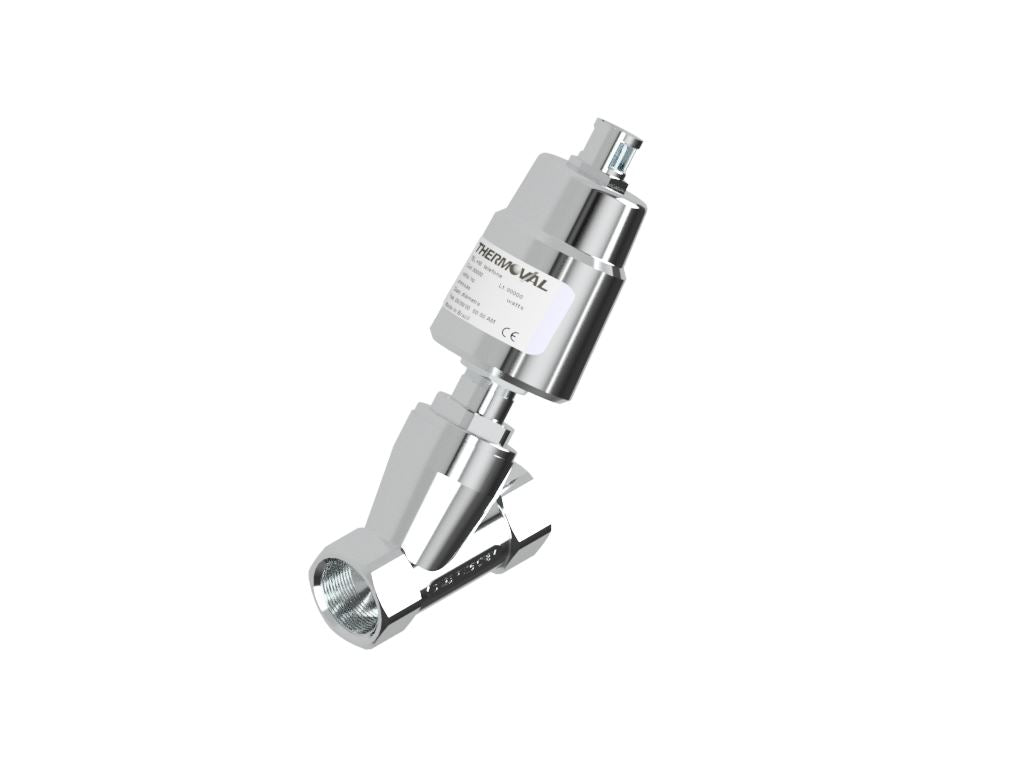

Angle Valve, 2way, Normally Closed, 1"NPT, Stainless Steel
Angle Valve, 2way, Normally Closed, 1"NPT, Stainless Steel
Regular price
$479.00 CAD
Regular price
$479.00 CAD
Sale price
$479.00 CAD
Unit price
/
per
Couldn't load pickup availability
OPERATION 2-Way Normally Closed with pneumatic command
CONNECTION
Connection Female 1" NPT (ANSI B2.1) - Inlet.
Connection Female 1" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 24,0 mm - (Kv 14,0) Flow Factor.
MATERIAL
Body - Stainless SteeI 316 Microcast (CF-8M).
Piston - Stainless SteeI 316.
Spring - Steel (SAE 6150) - White Zinc Treatment Cr3+.
SEAL Seals - PTFE Carbon and Fluorocarbon Elastomer (Viton)
ELETRICAL
PROPERTIES NOT APPLICABLE
MAIN APPLICATIONS
Oils at high temperature, solvent, silicon fluid, air, GLP, GNV, Di-Ester-lubricant based,Oxigen and steam (180°C).
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 1,42400
WARRANTY 1 Year
CONNECTION
Connection Female 1" NPT (ANSI B2.1) - Inlet.
Connection Female 1" NPT (ANSI B2.1) - Outlet.
ORIFICE Ø 24,0 mm - (Kv 14,0) Flow Factor.
MATERIAL
Body - Stainless SteeI 316 Microcast (CF-8M).
Piston - Stainless SteeI 316.
Spring - Steel (SAE 6150) - White Zinc Treatment Cr3+.
SEAL Seals - PTFE Carbon and Fluorocarbon Elastomer (Viton)
ELETRICAL
PROPERTIES NOT APPLICABLE
MAIN APPLICATIONS
Oils at high temperature, solvent, silicon fluid, air, GLP, GNV, Di-Ester-lubricant based,Oxigen and steam (180°C).
* Other applications consult compatibility
PRESSURE (PSI) Min. 0 / Max. 150
SPECIAL FEATURES
WEIGHT (KG) 1,42400
WARRANTY 1 Year
